Sharvi ST-LINK/V2 in-Circuit Debugger/Programmer for STM8 and STM32 Micro Controller Board Electronic Hobby Kit

Price: Not Available

अभी उपलब्ध नहीं है

Highlights

Power Source: AC, DC
RoHS Compliant
Material: Phenolic
Weight: 30

जानकारी

The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board. Much similar in architecture for debugging, the ST-LINK/V2 and the ST-LINK/V2-ISOL share the same features like digital isolation between the PC and the target application board which allows to withstands voltages of up to 1000 Vrms. Specifically, the debugger incorporates the use of a USB full-speed interface to communicate with the ST Visual Develop (STVD) or ST Visual Program (STVP) software for the STM8 application, and the use of the USB full-speed interface to communicate with Atollic®, IAR, Keil

Specifications

In The Box

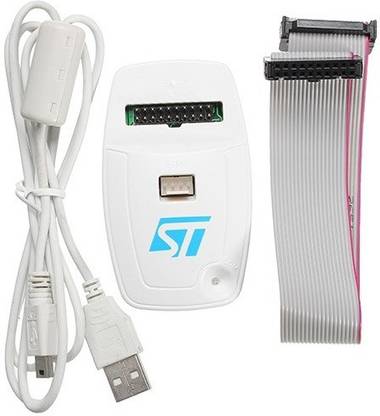

1 ST-LINK/V2 debugging and programming Unit, 1 USB standard A to mini B cable, 1 Connecting Cable for STM8 SWIM and STM32 JTAG/SWD protocol, 1 Flat ribbon with a standard ERNI connector at one end (A JTAG or SWD and SWV flat ribbon with a 20 pin connector)

General

Brand	Sharvi
Model Number	ST-LINK/V2 in-Circuit Debugger/Programmer for STM8 and STM32
Skillset	Sensory Development
Type	Micro Controller Board
ROHS Complaint	Yes
Material	Phenolic
Age Group	16+ Years
Key Features	Input Supply voltage: 1.65 – 5.5V, USB type: USB A to Mini- B cable, 5V power supplied by a USB connector, USB 2.0 full speed compatible interface, USB standard A to mini B cable, 1.65V to 5.5V application voltage supported on SWIM interface, SWIM low speed and high-speed modes supported, 1.65V to 3.6V application voltage supported on the JTAG/SWD interface and 5V tolerant inputs, Status LED which blinks during communication with the PC
