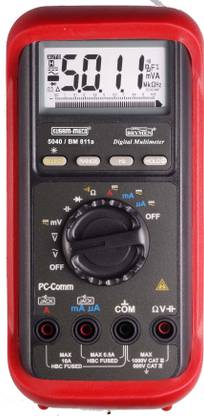

Kusam-meco 3 4/5 Digit 5000 Counts, 13 Functions 45 Ranges Digital Multimeter (Black, Red 6000 Counts)

इस प्रोडक्ट पर राय देने वाले पहले व्यक्ति बने

₹12,501

₹15,450

19% off

बिक गया

यह आइटम अभी स्टॉक में नहीं है

Highlights

Material: Plastic
Display Type: LCD
DC Voltage: NMRR : > 60dB @ 50 / 60Hz, CMRR : > 120dB @ DC, 50 / 60Hz, Rs=1KW, Input Impedance : 10MW, 16pF nominal (44pF nominal for 50mV & 500mV ranges)
Resistance: Open Circuit Voltage : < 1.3V DC ( < 3V DC for 50W & 500W ranges)

Seller

VoltsAmp

Specifications

General

Brand	Kusam-meco
Model Number	3 4/5 Digit 5000 Counts, 13 Functions 45 Ranges
Type	Digital
Display Type	LCD
Color	Black, Red
Material	Plastic
Primary Functions	13 FUNCTIONS 45 RANGES
Number of Counts	6000
Model Name	3 4/5 Digit 5000 Counts Digital Multimeter 13 Functions 45 Ranges
Brand Color	BLACK, RED
LED Indicators	Yes
Operating Temperature	0°C to 45°C
Audible Continuity Test	Yes
Buttons	Yes
Display Size	3-4/5 digits 5000 counts LCD display
Data Freeze	Yes
Autoranging	Yes
Reading Storage	Yes
Backlight	Yes
PC Connectivity	Yes

Power Features

Battery Type	Single 9V battery
Number of Batteries	1

Functions

AC Current	10A continuous, >10A to 15A for 30 seconds max with 5 minutes cool down interval, Burden Voltage : 0.15mV / mA for 500mA, 5000mA. 3.3mV / mA for 50mA, 500mA & 45mV / A for 5A, 10A.
DC Current	10A continuous, >10A to 15A for 30 seconds max with 5 minutes cool down interval, Burden Voltage : 0.15mV / mA for 500mA, 5000mA. 3.3mV / mA for 50mA, 500mA & 45mV / A for 5A, 10A.
AC Voltage	Specified from 30% to 100% of range, CMRR : > 60dB @ DC to 60Hz, Rs = 1KW, Input Impedance : 10MW, 16pF nominal (44pF nominal for 50mV & 500mV ranges)
DC Voltage	NMRR : > 60dB @ 50 / 60Hz, CMRR : > 120dB @ DC, 50 / 60Hz, Rs=1KW, Input Impedance : 10MW, 16pF nominal (44pF nominal for 50mV & 500mV ranges)
Resistance	Open Circuit Voltage : < 1.3V DC ( < 3V DC for 50W & 500W ranges)
Capacitance	Accuracies with film capacitor or better., In manual-ranging mode, measurements not specified below 45.0mF and 450mF for 500.0mF & 9999mF ranges respectively.
Other Functions	DIODE TEST <3.5V DC

Additional Features

Certification	An ISO 9001:2015 Company
Other Features	Auto lead zero function, 50ms record MAX-MIN readings at fast 20/second measurement mode, 0.8ms Crest (instantaneous Peak-HOLD), Data Hold & Range- Hold, Backlighted Display, Audible & Visible input warning., Optical isolated RS232 PC-interface capabilities, MAX-MIN readings, Relative-Zero offset mode, Auto power off
