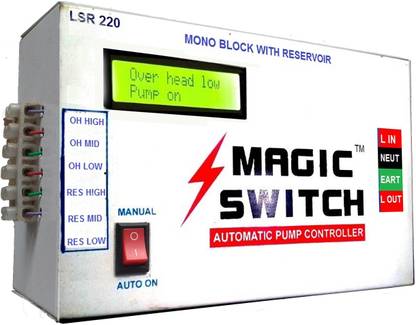

MAGIC SWITCH Automatic Monoblock/Openwell Pump Controller LSR 220 Preset Electronic Timer Switch (White)
Share
MAGIC SWITCH Automatic Monoblock/Openwell Pump Controller LSR 220 Preset Electronic Timer Switch (White)
इस प्रोडक्ट पर राय देने वाले पहले व्यक्ति बने
₹3,500
₹5,500
36% off
बिक गया
यह आइटम अभी स्टॉक में नहीं है
Highlights
- Free Cable & Sensors
Seller
जानकारी
@ MODEL - LSR 220 is suitable for Submersible 220/440 V Starter.
.
@ BODY MATERIAL -Metal body.
@ WEIGHT - 1 Kg.
@ DIMENSION - 8 /5/3 inch.
@ INPUT VOLTAGE - 220 V. AC/50-60 hz.
@ WATTAGE - 6 Watt.
@ HP - Max 2 HP.
@ WARRANTY - 3 Months.
@ CONNECTION POINT -
@ Phase In,Neutral - 220 V AC supply to operate the device.
@ Earth - Since the device is made of metal, it is important to connect it with earthing.
@ Phase Out - supply to Motor Pump.
@ Oh high,Oh mid,Oh low - Will be connected to the over head tank sensor.
@ Res high,Res mid,Res low - Will be connected to the Reservoir tank sensor.
@ ABOUT - LSR 220 device is suitable for 220 volt Open Well Motor Pump or Monoblock Pump, which is switched on & off by simple toogle switch or MCB.LSR 220 device will work with metal type sensor/float sensor and magnet sensor also.
@ YOUTUBE - To understand more details about the installation, click on our YouTube link and watch the video.
Read More
Specifications
General
| Brand |
|
| Model Number |
|
| Type |
|
| Color |
|
| Suitable For |
|
| Number of Programs Per Day |
|
| Net Quantity |
|
Power Features
| Power Requirement |
|
| Power Consumption |
|
| Rechargeable Battery |
|
Dimensions
| Height |
|
| Width |
|
| Weight |
|
Warranty
| Covered in Warranty |
|
| Not Covered in Warranty |
|
