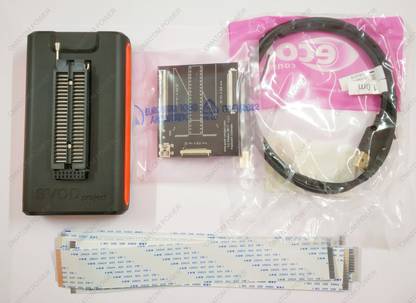

OMATOM POWER Svod4 Device Programmer Electronic Components Electronic Hobby Kit

SVOD V4 programmer is a universal programmer for various microcircuits. As you know you can program different kinds of chips such as: SPI, I2C, ONE WIRE, NAND, NAND SPI, NOR, EMMC, JTAG, UART, ENE, MEC, ITE, NUVOTON, parallel synchronous and asynchronous protocols. Automatic detection of “bad contact” when connecting chips. Protocol: JEDEC ID (spi25 flash, Nand have 5 byte ID, spi NAND have 512 byte ID, nor48,40 have 3 byte id, emmc have 512 byte id, new spi25 have id with 128 byte info). Specifications: *SVOD 4 port of connection to the computer: usb 2.0- 3.0 high speed, *SVOD 4 CPU: Processor ARM7, 480MHz *SVOD 4 Voltage: 12V, 5V, 3.3V, 2.5V, 1.8V, 1.5V, 1.25V, 1.2V, 0.8V *SVOD 4 GPIO PIN: 48+16 As you know you can program different kinds of chips such as: SPI, I2C, ONE WIRE, NAND, NAND SPI, NOR, EMMC BGA, JTAG, UART, ENE, MEC, ITE, NUVOTON, parallel synchronous and asynchronous protocols. Automatic detection of “bad contact” when connecting chips. Supported: KB9010,KB9012, KB9016, KB9018, KB9022, KB9028qc NPCE288N/NPCE388N ITE IT8380E PROGRAMMABLE ITE IT8380VG PROGRAMMABLE ITE IT8386 PROGRAMMABLE ITE IT8522 PROGRAMMABLE ITE IT8580 PROGRAMMABLE ITE IT8585E PROGRAMMABLE ITE IT8586E PROGRAMMABLE ITE IT8586VG PROGRAMMABLE ITE IT8587E PROGRAMMABLE ITE IT8589 PROGRAMMABLE ITE IT8886H PROGRAMMABLE ITE IT8886HE PROGRAMMABLE ITE IT8985E PROGRAMMABLE ITE IT8987E PROGRAMMABLE ITE IT8995E PROGRAMMABLE NUVOTON NPCE288NA0DX PROGRAMMABLE NUVOTON NPCE388NA0DX PROGRAMMABLE MEC1404-NU 128-VTQFP PROGRAMMABLE 128 KB SMSC MEC1404-SZ 144-WFBGA PROGRAMMABLE 128 KB SMSC MEC1406-NU 128-VTQFP PROGRAMMABLE 160 KB SMSC MEC1406-SZ 144-WFBGA PROGRAMMABLE 160 KB SMSC MEC1408-NU 128-VTQFP PROGRAMMABLE 192 KB SMSC MEC1408-SZ 144-WFBGA PROGRAMMABLE 192 KB SMSC MEC1414-NU 128-VTQFP PROGRAMMABLE 128 KB SMSC MEC1414-SZ 144-WFBGA PROGRAMMABLE 128 KB SMSC MEC1416-NU 128-VTQFP PROGRAMMABLE 160 KB SMSC MEC1416-SZ 144-WFBGA PROGRAMMABLE 160 KB SMSC MEC1418-NU 128-VTQFP PROGRAMMABLE 192 KB SMSC MEC1418-SZ 144-WFBGA PROGRAMMABLE 192 KB SMSC MEC1609 PROGRAMMABLE SMSC MEC1619 PROGRAMMABLE SMSC MEC1632 PROGRAMMABLE SMSC MEC1633 PROGRAMMABLE SMSC MEC1641 PROGRAMMABLE SMSC MEC1650 PROGRAMMABLE SMSC MEC1651 PROGRAMMABLE SMSC MEC1653 PROGRAMMABLE SMSC MEC5035 PROGRAMMABLE SMSC MEC5045 PROGRAMMABLE SMSC MEC5055 PROGRAMMABLE SMSC MEC5075 PROGRAMMABLE SMSC MEC1609 PROGRAMMABLE SMSC MEC1609I PROGRAMMABLE SMSC MEC1633L PROGRAMMABLE EPF011/021/035/036/037 SMSC MEC5085 NON-PROGRAMMABLE The mode of displaying POST codes of the laptop motherboard is implemented. Choose the software in the online base of your motherboard, download, select it in the choice of motherboard, connect the motherboard with a loop to the keyboard connector, and read the post codes by running the software in read mode of POST codes.
