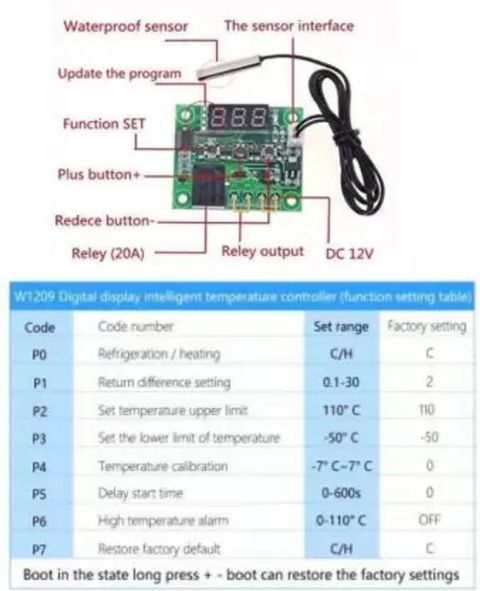

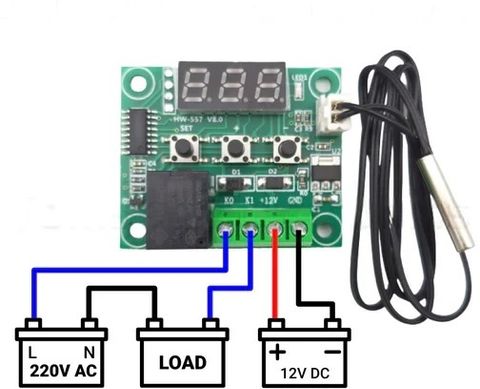

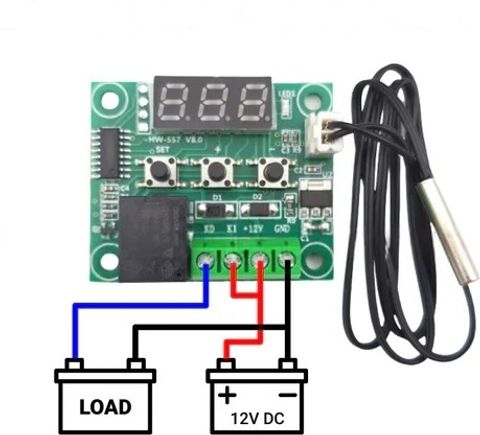

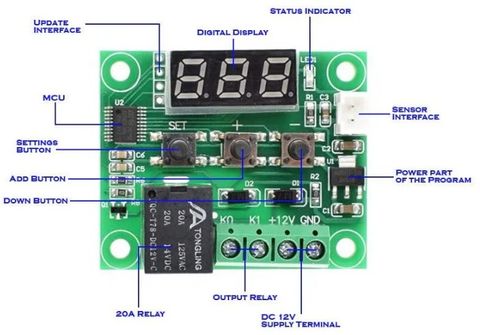

W1209 thermostat module has a temperature sensor, keys, LED display, relay and requires DC 12V power supply. It is an affordable, good quality thermostat controller. Thermostats are devices that sense the temperature of a system so that the temperature is maintained at the desired set point or near to it. NTC temperature sensor allows the module to intelligently control varied electrical devices based on the temperature. The relay can operate at voltages up to a maximum of 240V AC at 5A or 14V DC at 10A to power on. The temperature is displayed in degree centigrade and with the help of 7-segment display and the relay, the state is displayed with the help of the LED present on the W1209 module. Specification:- Temperature Control Range: -50 ~ 110°C, Resolution at -9.9 to 99.9: 0.1°C, Resolution at all other temperatures: 1°C, Control Accuracy: 0.1°C, Refresh Rate: 0.5 Seconds, Input Power (DC): 12V, Waterproof Sensor: 0.5M, Output: 1 Channel Relay Output, Capacity: 10A AND This is a fairly large, 12V operated fan. Axial fans blow air along the axis of the fan, or parallel to the track of the blade axis. DC axial fans are found in a variety of applications, including computing, servers, telecommunication cabinets, and any type of equipment where the need for thermal control is necessary for the improved reliability and life extension of the components that are included in the system. Uncontrolled heat generated by electronic devices will not only decrease the performance of any system, but will ultimately lead to complete system failure. In order to prevent this catastrophe from occurring, it is imperative that your equipment be designed with an efficient cooling system in mind.
