Himalayan power GE W 8000 RS 8000 W 5000 Electric Generator

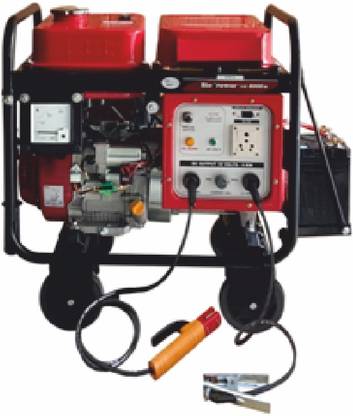

Himalayan Power Machine Manufacturing Co. MODEL NAME.GE W 8000 RS special highlights & application -- Portable Arc welder cum generator machine suitable for all types of general purpose structure welding, light and medium, up to 5mm Electrode in built AC 230volt-50hz, 5KVA for AC appliances. maximum output (Duty cycle 60%) 275amps.maximum output (Duty cycle 100%) 200amps. working voltage 20v to 35v open circuit voltage 65 volts (Minimum) current regulation amps 70 amps to 275 amps. rectifying mode 3 phase- bridge rectifying maximum electrode diameter 2.6mm to 5.0mm Type brushless with rear magnet rotor maximum power AC output 5000 VA rated output current 17.44amps AC. voltage at no load 240volt+10volts, single phase NFB amps 18 amps class of insulation F model HM 192 PY type single cylinder air-cooled; 4-stroke, OHV 25 inclined maximum power 16.0 HP broke stroke 92*67 displacement 445cc starting system recoil system/ self start ignition system TCI (Transistor control ignition) fuel standard petrol fuel tank capacity 15.5 ltr. fuel consumption# 2.0ltr./hr. continuous operating system hour approx. 8ltr. lube. oil capacity 1200ml lubricating oil consumption 4.3gm./hr. Ac plug 1 pec. tool kit 1 set welder holder 1 set earthing clamp with 3mtr. cable 1 set oil funnel 1 no. owner's manual 1 no. battery terminal 1set. battery tray & holding set 1set. A.C circuit protector (NFB) yes A.C pilot lamp yes engine oil protection yes ( electronic oil alert indicator) fuel level gauge yes A.C output sockets yes (1 nos.) costar wheels and handles yes (1 set) dimension L*W*H (mm) 67*51*57cm dry weight (kg) 103 kg battery specification 12 volt 25 ah size = 190*120*225 (L*W*H)..
