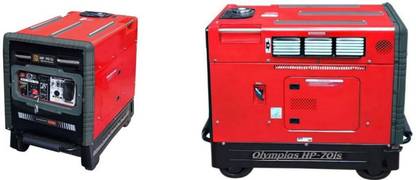

Himalayan power HP-70is 7000 W 0 Electric Generator

Specification Sheet For Genset Model Olympias HP-70is Model Name HP-70is Special Highlights • This is an Inverter Generator, 2 Or More Generators can be Connected in Parallel to run Much Bigger AC Loads. For Example To Run 15 KVA Load Connect two HP 70 is Genset in Parallel • Silent Type Portable Petrol Generator. • Powerful 8 KVA Portable Generators, Runs 1.5 / 2 Ton Air Conditioner + Other Loads. Application • For Running 1.5 / 2 Ton Air Condition, Office Use, Home Use, Small Institution, Computer Center, Nursing Home School Cyber Café Small Banks ATM, RTV Vans, Ambulances, Food Vans, Vanity Van & other Vehicular Applications, Etc. Max AC. Output VA 8000 Rated AC. Output VA 7000 Rated Current Amps 30.5 NFB Amps (3 Units) 16 Amps, 31 Amps, 50 Amps Rated Ac Voltage 230 V ± 1% Phase & Frequency Single Phase, 50 Hz ± 0.1 Generator #Alternator Max. Current Capacity 35 Amps. Alternator Multipole (11 Pairs), Permanent Magnet Alternator Inverter (8KW) High Voltage & High Frequency, Transformer Less, IGBT Technology, Paralleling Compatibility Model HM192PY Type OHV25°Inclined, Single Cylinder,4 strokes, S.I, Forced Air Cooling Maximum Power 16.0 hp @ 3600rpm Bore x Stroke 92×67 mm Displacement 445 cc Starting System Recoil Start + Self Start & Remote Start Fuel Tank Capacity 20 Ltr. Fuel Consumption (at 70% Load) Petrol 2.9 ltr/hr Approx. Continues Running (With One Filling) 7 Hrs. Lube. Oil Capacity 1200 ml. Lubricating Oil Consumption 4.3 gm./Hr. Sound level (Db) <86 Db Voltmeter Digital Digital Hour & Hz Meter Yes Oil Alert System Yes AMF Panel Optional Remote Start Yes Fuel Level Gauge Yes Overload Protection (NFB) Yes Output Indicator Yes Paralleling Compatibility Yes Alternator Engine Panel & Other Standard Features Paralleling Cable Yes (If Purchased 2 Gensets at a time) Costar Wheels Yes Approx. Weight 140.5 Kg Dimension LxWxH (mm) 700*565*730 (L×W×H) Battery Specification 12V - 18 Ah Recommended Solar Panel Specifications Connectors Low Power Medium Power High Power Port A 10S-36V, 100W 10S-36V, 200W 10S-36V, 300W Port B 10S-36V, 100W 10S-36V, 200W 10S-36V, 300W Port C 10S-36V, 100W 10S-36V, 200W 10S-36V, 300W Total Panel (W) 3000 Watt 6000 Watt 9000 Watt Min. Solar AC Output: 900 Watt Max. Solar AC Output: 8000 Watt Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specification can change without any prior intimation. Packing
