HIS Radeon HD 6970 GPU GDDR5 2 GB AMD/ATI Chipset 256 bit 880 MHz Graphics Card

Price: Not Available

Currently Unavailable

Warranty

The product will not suffer, in material or workmanship, from any defect that adversely affects the performance of the product. Products purchased ON or After November 1, 2009 MUST be registered within 30 days of the ORIGINAL DATE OF PURCHASE to receive EVGA's Free Extended Warranty. All products not registered within 30 days will ONLY receive a 1 year limited warranty. Limited 3 Year - All products registered within 30 days of the original purchase date will receive a 3 year warranty.

Highlights

880 MHzClock Speed
Chipset: AMD/ATI
BUS Standard: PCI Express 2.1
Graphics Engine: Radeon HD 6970 GPU
Memory Interface 256 bit

Important Note

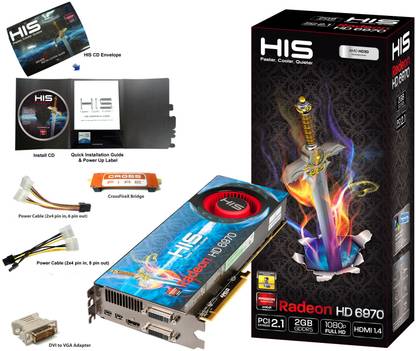

The packaging of this product may vary from what is shown in the image.

Specifications

General

Brand	HIS
Graphics Engine	AMD/ATI Radeon HD 6970 GPU
GPU Clock	880 MHz
Shader	Shader Version 5 with Clock speed of 880 MHz
Processors and Cores	1536 Stream Processor
RAMDAC Clock Speed	400 MHz
GPU Manufacturing Process	40 nm
Bus Standard	PCI Express 2.1
Cooling and Heatsink	Fan: 1
Model ID	Radeon HD 6970 GPU
Power Supply Required	550 W

Memory

256-bit, 2 GB GDDR5 Memory

Display

Maximum Resolution

2560 x 1600 (Digital)

Technologies Supported

Graphics Technologies Supported	Microsoft DirectX v11, Open GL Optimization v4.1, AMD CrossFireX supported
3D Support	Yes support

Connectivity

DVI and HDMI Interface	2 x DVI Output Out, Yes x Dual Link DVI Out, 1 x HDMI Output Out, Upper Single-link DVI-D, Bottom Dual-link DVI-I
Other Interface	2 x Mini Display Port Out
HD Content Support	HDCP Support and HDTV Support

System Requirements

Other System Requirements

PCI Express based PC is required with one x16 lane graphics slot with 2 slots space available on the motherboard, 550 Watt or greater power supply with one 75 W 6-pin, PCI Express power connector and one 150 W 8-pin PCI Expresss power connector recommended, Minimum 1 GB of system memory, Installation software requires CD-ROM drive, DVD playback requires DVD drive and a DVD, Blu-ray playback requires Blu-ray drive and a Blu-ray disc, For an AMD CrossFireX system / a second Radeon HD 6900 Series graphics card (An AMD CrossFireX Ready motherboard and one AMD CrossFireX Bridge Interconnect cable is required)

Other Features

Additional Features

AMD Eyefinity technology, AMD Advanced Parallel Processing technology, Advanced GDDR5 Memory technology, AMD CrossFireX technology, 3rd Generation TeraScale Engine, Accelerated Video Transcoding, Display Flexibility, HDMI 1.4, Dolly TrueHD and DTS-HD Master Audio supported, Enhanced Unified Video Decoder (UVD)

Warranty

Warranty Type	Limited - Part and Labour are covered
Warranty Summary	The product will not suffer, in material or workmanship, from any defect that adversely affects the performance of the product. Products purchased ON or After November 1, 2009 MUST be registered within 30 days of the ORIGINAL DATE OF PURCHASE to receive EVGA's Free Extended Warranty. All products not registered within 30 days will ONLY receive a 1 year limited warranty. Limited 3 Year - All products registered within 30 days of the original purchase date will receive a 3 year warranty.
Not Covered in Warranty	This Limited Warranty will not apply if a claim is made arising from any unacceptable use or care of the Product, including (without limitation) physically damaged, graphics card is burnt out, misuse, abuse, negligence, acts of God, unauthorized modification or repair, unauthorized commercial use and any operation of the Product outside HIS recommended parameters. This Limited Warranty is also invalid if any serial number or date stamp on the Product has been altered, obliterated or removed. Cosmetic damage and normal wear and tear are not covered. This Limited Warranty is only valid in the country where originally purchased. This Limited Warranty applies only to the original purchaser and is non-transferable. HIS is not responsible for any loss, damage or shipping charges incurred to our RMA Center. Additionally, HIS reserves the right to inspect and verify the defects of the product(s) that are returned. Replacement or refund of purchased product is not included in the warranty.
Service Type	Carry In
Domestic Term	3 Years
