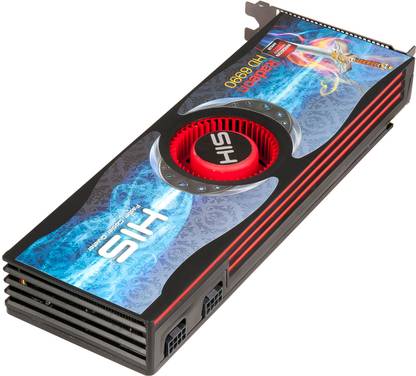

HIS Radeon HD 6990 GPU GDDR5 4 GB AMD/ATI Chipset 256 bit 830 MHz Graphics Card

Price: Not Available

Currently Unavailable

Warranty

The product will not suffer, in material or workmanship, from any defect that adversely affects the performance of the product. Products purchased ON or After November 1, 2009 MUST be registered within 30 days of the ORIGINAL DATE OF PURCHASE to receive EVGA's Free Extended Warranty. All products not registered within 30 days will ONLY receive a 1 year limited warranty. Limited 3 Year - All products registered within 30 days of the original purchase date will receive a 3 year warranty.

Highlights

830 MHzClock Speed
Chipset: AMD/ATI
BUS Standard: PCI Express 2.1
Graphics Engine: Radeon HD 6990 GPU
Memory Interface 256 bit

Important Note

The packaging of this product may vary from what is shown in the image.

Specifications

General

Brand	HIS
Graphics Engine	AMD/ATI Radeon HD 6990 GPU
GPU Clock	830 MHz
Shader	Shader Version 5 with Clock speed of 830 MHz
Processors and Cores	3072 Shader Processors
RAMDAC Clock Speed	400 MHz
GPU Manufacturing Process	40 nm
Bus Standard	PCI Express 2.1
Cooling and Heatsink	Fan: 1
Model ID	Radeon HD 6990 GPU
Power Supply Required	750 W

Memory

256-bit, 4 GB GDDR5 Memory

Display

Maximum Resolution

2560 x 1600 (Digital)

Technologies Supported

Graphics Technologies Supported	Microsoft DirectX v11, Open GL Optimization v4.1, AMD CrossFireX supported
3D Support	Yes support

Connectivity

DVI and HDMI Interface	1 x DVI Output Out, Yes x Dual Link DVI Out
Other Interface	4 x Mini Display Port Out
HD Content Support	HDCP Support and HDTV Support

System Requirements

Other System Requirements

PCI Express based PC is required with one x16 lane graphics slot with 2 slots space available on the motherboard, 750 Watt or greater power supply with two 150 W 8-pin PCI Express power connectors recommended (1000 W and four 8-pin connectors recommended for AMD CrossFireX technology in dual mode. 1200 W recommended for optimal performance), Minimum 1 GB of system memory, Installation software requires CD-ROM drive or DVD-ROM drive, DVD playback requires DVD drive and a DVD, Blu-ray playback requires Blu-ray drive and a Blu-ray disc, For an AMD CrossFireX system a second Radeon HD 6990 Graphics card (an AMD CrossFireX Ready motherboard and one AMD CrossFireX Bridge Interconnect cable is required), Use of 3 or more displays with AMD eyefinity technology requires a Display Port-capable panel or an AMD Eyefinity validated dongle.

Dimensions

42 x 128 x 320 mm

Other Features

Additional Features

AMD HD3D technology, AMD Advanced Parallel Processing technology, Advanced GDDR5 Memory technology, AMD CrossFireX technology, 4th Generation TeraScale Engine, 40nm Process Technology, AMD PowerTune technology, Accelerated Video Transcoding, HDMI 1.4a support, Dolly TrueHD and DTS-HD Master audio support, Enhanced Unified Video Decoder (UVD)

Warranty

Warranty Type	Limited - Part and Labour are covered
Warranty Summary	The product will not suffer, in material or workmanship, from any defect that adversely affects the performance of the product. Products purchased ON or After November 1, 2009 MUST be registered within 30 days of the ORIGINAL DATE OF PURCHASE to receive EVGA's Free Extended Warranty. All products not registered within 30 days will ONLY receive a 1 year limited warranty. Limited 3 Year - All products registered within 30 days of the original purchase date will receive a 3 year warranty.
Not Covered in Warranty	This Limited Warranty will not apply if a claim is made arising from any unacceptable use or care of the Product, including (without limitation) physically damaged, graphics card is burnt out, misuse, abuse, negligence, acts of God, unauthorized modification or repair, unauthorized commercial use and any operation of the Product outside HIS recommended parameters. This Limited Warranty is also invalid if any serial number or date stamp on the Product has been altered, obliterated or removed. Cosmetic damage and normal wear and tear are not covered. This Limited Warranty is only valid in the country where originally purchased. This Limited Warranty applies only to the original purchaser and is non-transferable. HIS is not responsible for any loss, damage or shipping charges incurred to our RMA Center. Additionally, HIS reserves the right to inspect and verify the defects of the product(s) that are returned. Replacement or refund of purchased product is not included in the warranty.
Service Type	Carry In
Domestic Term	3 Years

Ratings & Reviews

4.6

★

14 Ratings &

2 Reviews

5★
4★
3★
2★
1★

Beasts are out there in markets!!!!

i just got it 1 month back and first time i opened the box seen the 12inch beast and connected to my pc and ofcourse u need a gud system requirments for this i have:
.
1.asus rampage 4 motherboard
2.16 gigs of 2100 ram
3.intel core i7 extreme 3960x processor overclocked 4.9ghz
4.swiftech h20-220 water cooler
5.(beasts)HIS ati radeon hd6990 and asus atiradeon hd6990
6.30inch monitor dell ultrasharp
etc. awesome build pc by me near 214k
costly but awesome my previous graphics card was asus mars...

lovish maan

Apr, 2012

Permalink

Report Abuse

MY REVIEW

MY Specs:
i7 3960x Extreme Processor @ 3.6GHz Superclocked to 4.8Ghz
ASRock X79 Extreme 9 Gen 9 Motherboard
GSKill RipjawsZ 16GB DDR3 @ 2400Mhz (Quad Channel) + 6GB Kingston HyperX Ti H20 Liquid RAM @ 2133Mhz
XFX AMD HD 7970 Double Dissipation 3GB GDDR5 + Sapphire HD 7970 OC 3GB GDDR5
2 X 3TB Seagate Barracuda XT + 480GB Kingston HyperX Black SSD
Antec H20 Cooler
Corsair AX 1200 PSU
Creative Sound Blaster Recon 3D Quad Core Sound Processor
And its Way better than any of the specs in...

Priyotosh Bairagya

May, 2012

Permalink

Report Abuse
