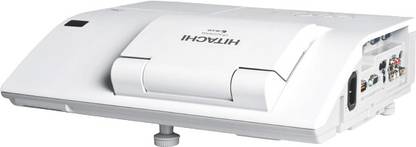

Hitachi CP-A222WNM (1500 lm / Remote Controller) Projector
Share

Hitachi CP-A222WNM (1500 lm / Remote Controller) Projector  (White)

Price: Not Available
Currently Unavailable
Warranty
3 Year Limited Warranty on Parts, 3 Years Limited Warranty on Lamp
Highlights
  • Projector Type: WXGA | Chipset: LCD
  • Lamp Life: 5000 hr
  • Resolution: 1024 x 768 pixels
  • Aspect Ratio: 4:3, 16:9, 16:10, 14:9
  • Maximum Brightness: 1500 lm
  • HDMI Ports: 1
  • Number of VGA In:2
Specifications
General
Sales Package
  • Projector, Remote Control with Batteries, RGB Cable, Power Chord, Cable Cover, Security Label, User Manual (Detail and Concise), Application CD, Wall Mount (HAS-K252), Adapter Cover
Model Name
  • CP-A222WNM
Part Number
  • CP-A222WNM
Color
  • White
Maximum Brightness
  • 1500 lm
Mounting
  • Ceiling
Display And Audio Features
HD Graphic Mode
  • 525i (480i), 525p (480p), 625i (576i), 1125i (1080i at 50/60), 1125p (1080p at 50/60), 750p (720p at 50/60)
Graphic Mode
  • VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA
Signal Type
  • Composite / S-Video: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43
Maximum Diagonal Projection Size
  • 100 inch
Contrast Ratio
  • 4000:1 Hz
Color Support
  • 16.7 Million Colors (8-bit)
Other Display Features
  • LCD Panel: 0.63 inch (1.6 cm), Brightness: 2200 ANSI Lumens (Bright Mode), Color Light Output (Brightness): 2200 ANSI Lumens (Bright Mode) / 1500 ANSI Lumens (Normal Mode), Lamp Life: 3000 hrs (Bright Mode), Diagonal Display Size: 60 - 100 inch (152 - 254 cm)
Audio Type
  • Mono
Other Audio Features
  • Speaker Output: 10 W
Connectivity Features
USB Version
  • USB Type A, USB Type B
RS 232 Connectors
  • RS-232 (1 x 9-pin D-sub)
Number of VGA Ports
  • 2
VGA In
  • 15-pin Mini D-sub
VGA Out
  • 15-pin Mini-D-sub
S Video
  • Yes
RCA Composite Video In
  • Yes
Audio In
  • 2 x Stereo Mini Jack, 1 x Pair RCA (L/R)
Audio Out
  • 1 x Pair RCA (L/R)
Microphone In
  • Yes
HDMI Ports
  • 1
USB Ports
  • 3
Number of RJ-45 Ethernet Port
  • 1
Other Connectors
  • 1 x HDMI (HDCP Compatible), Video Input: 2 x Component D-sub (Shared with Analogue Computer in 1/2), 1 x Microphone Jack
Additional Details
Minimum Operating Temperature
  • 0 deg;C
Maximum Operating Temperature
  • 40 deg;C
Normal Noise Level
  • 28 dB
Other Operating Conditions
  • Noise Level: 34 dB (Bright), Ambient Temperature Operating Storage: -20°C - 60°C
Other Lens Features
  • Free Shaped Lens and Motorised Free Shaped Mirror, Focus Distance: 0.4 to 0.7 m (From Mirror Top to Screen Plane)
Remote Control
  • Yes
Functional Modes
  • Bright Mode, Normal Mode
Number of OSD Languages
  • 33
Keystone Adjustment
  • Keystone: Fixed, 6.1 - 1 Upward Shift, Normal at 71.1° Projection Angle / Digital Keystone: Horizontal 5°, Vertical 5°
Security Slot
  • Yes
Controls
  • Freeze, Magnifying, Blank, Auto Adjustment, Mirror Reverse Image, Up-side Down Image, Auto Signal Search, Picture Adjustments, Outward, Power On and Off
Other Features
  • Distance To Width Ratio (:1): 0.3:1 (Fixed), Plug and Play: DDC2B, Advanced Features - My Screen, My Memory, My Button by Remote Control, My Source, My Text, Picturemode (8 Modes), Source Naming (English), Resolution Setting, Template, Saving Mode, Audio Pass Through, Cloning, Audio Soundmixing, Audio Out (Standby) and Monitor Out/Selectable Source with Menu, Eco Mode (Normal, Eco, Intelligent Eco, Saver), Filter Timer/Selectable Interval Time, PC-less Presentation (JPEG, PNG, BMP,GIF, AVI, MOV), Stand-by Audio, Template, On Screen Installation Guide, iOS Connectivity, Security Systems: PIN Security Lock, Myscreen Password Lock, Transition Detector, My Text, Password Lock, Key Lock (Key Pad, Remote Control), Kensington Slot, Security Bar, Lens Door Lock, Network, Certification: UL60950-1/ cUL, FCC Part15 Subpart B, Class B, CE Marking: EN61000-3-2, EN61000-3-3, EN55022 (Class B), EN55024 (EMC Directive), EN60950-1 (Low Voltage Directive), WEEE/RoHS, / ErP Compliant, C-Tick Class B (Australia/New Zealand), GOST-R (Russia), Miscellaneous: Lamp Indicator Light, Power Light, Rear Projection Image, Serial Number Label on Side
Dimensions
Width Without Stand
  • 345 mm
Height Without Stand
  • 85 mm
Depth Without Stand
  • 303 mm
Weight Without Stand
  • 3.8 kg
Warranty
Warranty Summary
  • 3 Year Limited Warranty on Parts, 3 Years Limited Warranty on Lamp
Covered in Warranty
  • Parts and Lamp
