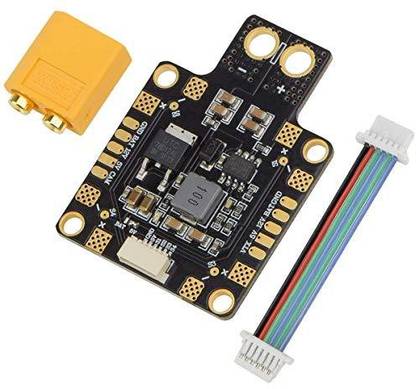

HOBBYMATE Xt60 Pdb Power Distribution Board - Support 3-6S Input, 5V/12V Output Support The Lc Filter 3030Mm Mount  (Multicolor)

2oz Copper foil,4 layer,1.6mm PCB. Support the LC filter,reduce wave interference PDB Output 50Ax4,Max.65A BEC Output 5V(3A)and 12V(500mA) Include XT60 plug BEC 5V Output: Designed for RC Receivers,Flight controllers,OSD, and Servos. DC/DC synchronous buck regulator. Volt :5.0 +/- 0.1VDC Continuous current:2 Amps9(Max.2.5A 10s/minute) Output Ripple:40mV 9VIn=16V, VOut=5V2A load) Short-circuit tolerant(5 seconds/minute) BEC 12V Output: Designed for Video TX or FPV camera with linear regulator. The battery should be 4S LiPo (13~18V DC) Volt : 12.0 +/- 0.3VDC Continuous current: 500mA (Max.0.8A 5s/minute) Short-circuit tolerant (2 seconds/minute) BEC 12V3S LiPo Output volt = 3S LiPo volt -1V Physical: Dimensions:36 x 50 x 4 mm (without XT60) Mounting:30.5 x 30.5mm, 3mm Weight:7.5g (w/o XT60),11g(w/XT60) Pack Including 1 * HOBBYMATE XT60 Power Distribution Board 1 * 6PIN Connection Cable HOBBYMATE XT60 PDB Power Distribution Board - Support 3-6S Input, 5V/12V Output Support the LC filter 3030mm Mount +++ HOBBYMATE FPV Drone PDB make the connection easy between the flight controller and PDB board and to the esc, what's more is if you don't have a socket for esc's, you can also solder the esc on the PDB board easy and make the building clean and clear |
