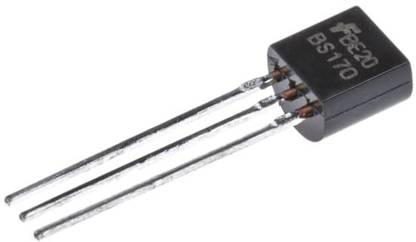

HRTRONICS (PACK PF 20) BS170 Power MOSFET, N Channel, 60 V, 500 mA, 1.2 ohm, TO-92, Through Hole, BS170 Power MOSFET, N Channel, 60 V, 500 mA, 1.2 ohm, TO-92, Through Hole FET Transistor

HRTRONICS (PACK PF 20) BS170 Power MOSFET, N Channel, 60 V, 500 mA, 1.2 ohm, TO-92, Through Hole, BS170 Power MOSFET, N Channel, 60 V, 500 mA, 1.2 ohm, TO-92, Through Hole FET Transistor  (Number of Transistors 20)

Price: Not Available
Currently Unavailable
Description
The BS170 is a N-channel enhancement mode Field Effect Transistor is produced using high cell density, DMOS technology. This very high density process has been designed to minimize on-state resistance while provide rugged, reliable and fast switching performance. It can be used in most applications requiring up to 500mA DC. It is also suitable for low voltage, low current applications such as small servo motor control, power MOSFET gate drivers and other switching applications.
Read More
Specifications
In The Box
Number of Transistors
  • 20
General
Brand
  • HRTRONICS
Model Number
  • (PACK PF 20) BS170 Power MOSFET, N Channel, 60 V, 500 mA, 1.2 ohm, TO-92, Through Hole, BS170 Power MOSFET, N Channel, 60 V, 500 mA, 1.2 ohm, TO-92, Through Hole
Type
  • FET
Package Type
  • TO-92
Power Consumption
  • 4 mW
Maximum Collector Current
  • 500 mA
Maximum Collector Emitter Voltage
  • 60 V
Mount Type
  • FIXED
DC Current Gain
  • 1
Maximum Operating Frequency
  • 10 MHz
Number of Pins
  • 3
Net Quantity
  • 20 Transistors
Dimensions
Width
  • 0.5 mm
Length
  • 2.5 mm
Depth
  • 0.5 mm
