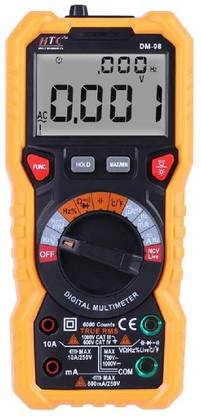

    HTV DM 98 3 Digital 6000 Counts /TRms Digital Multimeter Black, Yellow 6000 Count Digital Multimeter

    HTV DM 98 3 Digital 6000 Counts /TRms Digital Multimeter Black, Yellow 6000 Count Digital Multimeter  (Yellow, Black 6000 Counts)

    Price: Not Available
    Currently Unavailable
    Highlights
    • Material: Plastic
    • Display Type: LCD
    • DC Voltage: 600mV/6V/60V/600V/1000V ±(0.5%+3)
    • Resistance: 600?/6k?/60k?/600k?/6M?/60M?, ±(0.8%+3)
    Specifications
    General
    Brand
    • HTV
    Model Number
    • DM 98 3 Digital 6000 Counts /TRms Digital Multimeter Black, Yellow 6000 Count
    Type
    • Digital
    Display Type
    • LCD
    Color
    • Yellow, Black
    Material
    • Plastic
    Primary Functions
    • Basic Accuracy (0.5% + 3 DCV)
    Number of Counts
    • 6000
    Model Name
    • HTC DM-98 with True RMS/Autorange/Dual Display,Double Colour Digital Multimeter
    Brand Color
    • YELLOW, BLACK, GREEN
    LED Indicators
    • Yes
    Operating Temperature
    • Temperature (°C/°F): -40°C~1000°C, ±(1.0%+3), -40°F~1832°F ±(1.0%+3)
    Audible Continuity Test
    • Yes
    Data Freeze
    • Yes
    Autoranging
    • Yes
    Reading Storage
    • Yes
    PC Connectivity
    • Yes
    Net Quantity
    • 1
    Power Features
    Battery Type
    • AAA
    Number of Batteries
    • 2
    Other Power Features
    • Counts: 6000 Counts, Auto Range - Display: LCD dual display - Bargraph: ? - Live Test (Sound & Light Alarm) ? - NCV (Sound & Light Alarm) ? - Diode Test ? - Continuity (Sound & Light Alarm) ? - Max / Min Hold ? - Data Hold ? - True RMS ? - Bandwidth 1kHz - Battery Test (1.5V / 9V) Low Battery Indication ? Auto Power Off ? Double Colour Backlight ? Input Jack LED Indicate ?
    Functions
    AC Current
    • 600uA 0.1uA ±1.5% of rdg + 3 digits 6000uA 1uA 60mA 0.01mA 600mA 0.1mA 10A 0.01A
    DC Current
    • 600uA/6000uA/60mA/600mA. ±(0.8%+3) 10A, ±(1.2%+3)
    AC Voltage
    • 10nF 0.001nF ±4.0% of rdg + 5 digits 100nF 0.01nF 10µF 0.1nF 10mF 0.001µF 100µF 0.01µF 100mF 0.1µF 1000mF 0.001mF ±5.0% of rdg + 5 digits 1000µF 0.01mF
    DC Voltage
    • 600mV/6V/60V/600V/1000V ±(0.5%+3)
    Resistance
    • 600?/6k?/60k?/600k?/6M?/60M?, ±(0.8%+3)
    Capacitance
    • 10nF/100nF/1?F/10?F/100?F/1mF/10mF ±(4.0%+3),100mF, ±(5.0%+5)
    Other Functions
    • Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz, ±(1.0%+3
    Additional Features
    Certification
    • YES
    Dimensions
    Width
    • 88 mm
    Height
    • 188 mm
    Depth
    • 58 mm
    Weight
    • 400 g
