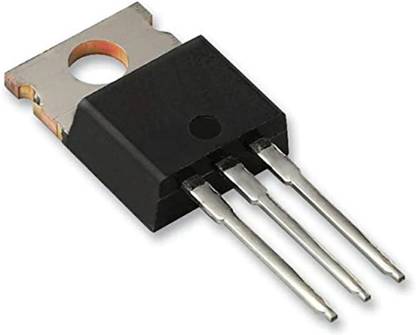

Ihc 7809 Voltage Regulator 9V(PACK OF 10) Electronic Components Electronic Hobby Kit

This regulator can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. It employs internal current limiting, thermal shutdown and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, it can deliver over 1a output current. Although designed primarily as fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents *thermal overload protection *short circuit protection *output transition soa protection *2 % output voltage tolerance product category: linear voltage regulators mounting style: through hole package/case: to-220 number of outputs: 1 output polarity: positive output voltage: 9 v output current: 1.5 a output type: fixed input voltage max: 35 v input voltage min: 11 v minimum operating temperature: 0 c maximum operating temperature: + 125 c load regulation: 180 mv line regulation: 180 mv series: l78 psrr / ripple rejection - typ: 55 db product type: linear voltage regulators subcategory: pmic - power management ics unit weight: 2.300 g applications: power management
