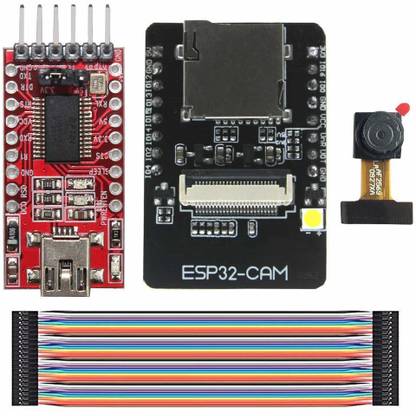

IDUINO ESP32-CAM Camera WiFi Module USB to TTL Serial Converter + 40 pin Jumper Wire Electronic Components Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Power Source: DC
Material: Brass
Weight: 0.2

Description

ESP32-CAM Specifications: - IO Port: 9 - SPI Flash: Default 32Mbit - RAM: Internal 520KB + External 4M PSRAM - Power Supply Range: 5V 2A - Bluetooth: Bluetooth 4.3 BR/EDR and BLE standard - WiFi: 820.11 b/g/n/e/i - Support Interface: UART/SPI/I2C/PWM - Support TF Card: Maximum 4G - Serial Port Rate: Default 115200 bps - Image Output Format: JPEG (Only OV2640 support), BMP, GRAYSCALE - Spectrum Range: 2412-2484MHZ - Antenna Form: Onboard PCB antenna, gain 2dBi - Transmit Power: 820.11b: 17±2dBm (@11Mbps); 820.11g: 14±2dBm (@54Mbps); 820.11n: 13±2dBm (@MCS7) - Safety: WPA/WPA2/WPA2-Enterprise/WPS FTDI USB To TTL Serial Converter: Chip: FT232RL, not genuine FTDI chip Pin definition: DTR, RXD, TX, VCC, CTS, GND Operating Voltage: 3.3V and 5V Pitch: 2.54mm Size: 40 x 18mm (L x W) Interface: Mini USB Support: Win95/98/98se/ME/2000/XP/win7 32bit 64bit /Vsita/, Do not Support Win8 XD / TXD transceiver communication indicator Jumper Wires: Pitch: 2.54mm Each cable length: 20CM Material: high-grade copper wire Type: Female-Female Package Included: - 1 x Mini ESP32 WiFi + Bluetooth Module - 1 x OV2640 camera - 1 x FTDI USB To TTL Serial Converter - 1 x 20cm 40pin Female-Female Jumper Wires

Specifications

In The Box

1 x Mini ESP32 WiFi + Bluetooth Module 1 x OV2640 camera 1 x FTDI USB To TTL Serial Converter

General

Brand	IDUINO
Model Number	ESP32-CAM Camera WiFi Module USB to TTL Serial Converter + 40 pin Jumper Wire
Skillset	General Knowledge
Type	Electronic Components
Minimum Age	12
ROHS Complaint	No
Material	Brass
Age Group	12-14 Years
Lights	No
Sound	No
Suitable For Gifting	NA
Gift Pack	No
Key Features	?ESP32-CAM?ESP-32CAM can be used in various IoT applications. It is suitable for smart home appliances, industrial wireless control, wireless surveillance, wireless QR identification, wireless location system signals, etc. It is an ideal solution for IoT applications., ?High Performance?Extremely small 802.11b / g / n Wi-Fi + BT / BLE SoC module; Dual-core 5V low-power 32-bit CPU processor; Frequency up to 240 MHz, computing up to 600 DMIPS; Built-in 520 KB SRAM, external 4M PSRAM., ?FT232RL Module?The KeeYees FTDI USB Serial Adapter comes with the FT232RL chip and uses both 3.3V and 5V operating voltage. Adapter Logic-level can be set via jumpers on the board, which makes simple to connect to your controller. USB power has over current protection, using 500MA self-restore fuse. You can use the modules in this kit to burn the program directly without additional purchase.

Dimensions

Width	5 cm
Height	4 cm
Weight	0.2

Power Features

Battery Type	NA
No Of Batteries	0
Battery Size	NA
Power Source	DC
Other Power Features	NA
