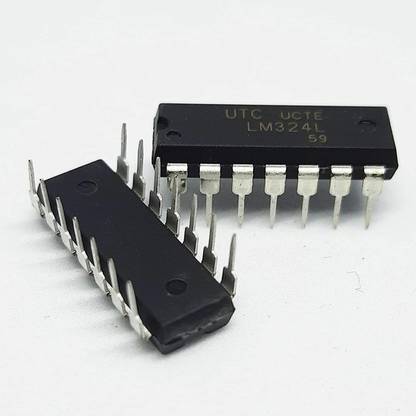

Ihc LM324 UTC LM324L 59 QUAD OPERATIONAL AMPLIFIER IC (PACK OF 5) Educational Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Power Source: DC
Material: Plastic
Weight: 50

Description

The UTC LM324 consists of four independent, high gain internally frequency compensated operational amplifiers which are designed specifically to operated from a single power supply over a wide voltage range. Operation from split power supplies is also possible. Application areas include transducer amplifier, DC gain blocks and all the conventional OP amp circuits which now can be easily implemented in single power supply system.

Specifications

In The Box

PACK OF 05

General

Brand	Ihc
Model Number	LM324 UTC LM324L 59 QUAD OPERATIONAL AMPLIFIER IC (PACK OF 5)
Skillset	Creativity & Imagination
Type	Educational
ROHS Complaint	No
Material	Plastic
Age Group	16+ Years
Key Features	Internally frequency compensated for unity gain., Large DC voltage gain :100dB., Wide operating supply range (Vcc=3V~32V)., Input common-mode voltage includes ground., Large output voltage swing: From 0V to Vcc-1.5V.

Dimensions

Width	2 cm
Height	3 cm
Weight	50

Power Features

Battery Type	N/A
No Of Batteries	N/A
Battery Size	N/A
Power Source	DC
Other Power Features	N/A
