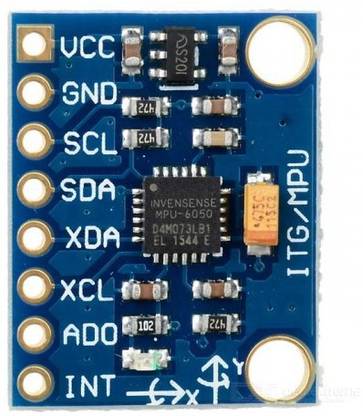

Ihc MPU-6050 3 Axis Gyro Accelerometer Sensor Module By INDIAN HOBBY CENTER Electronic Components Electronic Hobby Kit
Price: Not Available
Currently Unavailable
Highlights
Power Source: DC
RoHS Compliant
Material: Plastic
Weight: 33
Description
Description: Name: MPU-6050 module (three-axis gyroscope + triaxial accelerometer) 2.54mm pin spacing MPU-6050 Accelerometer + Gyro The MPU-6050 sensor contains a MEMS accelerometer and a MEMS gyro in a single chip. It is very accurate, since it contains 16-bits analog to digital conversion hardware for each channel. Therefor it captures the x, y, and z channel at the same time. Specification: 16bit AD converter-chip, 16-bit data output Use Chip: MPU-6050 Power supply :3-5v (internal low dropout regulator) Communication: IIC communication protocol standard Gyro Range: ± 250 500 1000 2000 ° / s Acceleration range: ± 2 ± 4 ± 8 ± 16g Using Immersion Gold PCB, welding machines to ensure quality Size: 2 x 1.6 x 0.1mm Application: Motion sensing games Augmented Reality Electronic Image Stabilization (EIS: Electronic Image Stabilization) Optical Image Stabilization (OIS: Optical Image Stabilization) "Zero-touch" gestures User Interface Pedestrian navigation Gesture shortcuts
Read More
Specifications
In The Box
pack of 1
General
Brand
Ihc
Model Number
MPU-6050 3 Axis Gyro Accelerometer Sensor Module By INDIAN HOBBY CENTER
Skillset
Creativity & Imagination
Type
Electronic Components
ROHS Complaint
Yes
Material
Plastic
Age Group
10-12 Years
Key Features
Chip built-in 16bit AD converter, 16-bit data output, Driver Chip: MPU6050, Operating Voltage: 3-5V DC
Dimensions
Width
3 cm
Height
5 cm
Weight
33
Power Features
Battery Type
N/A
No Of Batteries
N/A
Battery Size
N/A
Power Source
DC
Other Power Features
N/A
