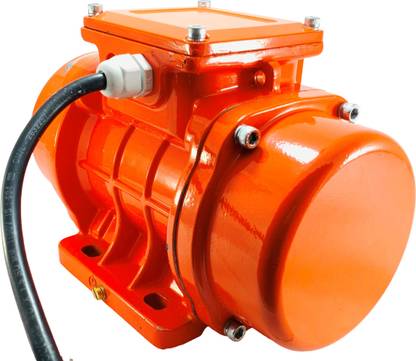

iMixx Vibro Motor SA-200 240 V AC , 50 Hz Single Phase Induction Motor

Price: Not Available

Currently Unavailable

Warranty

Warranty for iMixx Vibro Motor is for 1 year from the date of purchase against manufacturing defect only. Warrantee doesn't cover damage due to external force / impact. Also warrantee doesn't cover burning of motor for whatsoever reason.

Description

VIBRO MOTOR MODEL SA-200 240V AC Single Phase 50 Hz INPUT POWER 0.18 KW (0.25 Hp) WORKING MOMENT 3.72 Kg/cm CENTRIFUGAL FORCE 1870 N NOMINAL CURRENT 0.76 Amp RPM 3000 , 2 Pole Enclosure IP 66 Self Weight of SA-200 vibro motor 7 Kgs Voltage 240 Volts AC, Single Phase Frequency : 50 Hz Temperature : Max upto 100 Deg C Length – 217 mm Height 158 mm Width – 130 mm Orange Colour Aluminium body for resistance to weather and corrosion. External electric vibrator for use in material flow and compacting applications Suitable for Vibrating hopper of 1 Ton capacity. Packing Dimensions: Length 11” x Width 8” x Height 8.5”

Specifications

In The Box

Sales Package

General

Brand	iMixx
Model Number	Vibro Motor SA-200 240 V AC , 50 Hz Single Phase
Suitable For	Vibration of Hoppers
Type	Induction Motor
Pole	2
Speed	3000 RPM
Frequency	50 Hz
Power Consumption	180 W
IP Rating	IP 66
Power Requirement	240 V AC
Mounting Type	Foot Mount
Material	Aluminium

Dimensions

Height	15.8 cm
Length	21.7 cm
Width	13 cm
Weight	7 kg
Other Dimensions	Length – 217 mm Height 158 mm Width – 130 mm

Warranty

Service Type	will have to send to our services station
Covered in Warranty	12 months from the date of dispatch
Not Covered in Warranty	Burning of motor winding
Warranty Summary	Warranty for iMixx Vibro Motor is for 1 year from the date of purchase against manufacturing defect only. Warrantee doesn't cover damage due to external force / impact. Also warrantee doesn't cover burning of motor for whatsoever reason.
