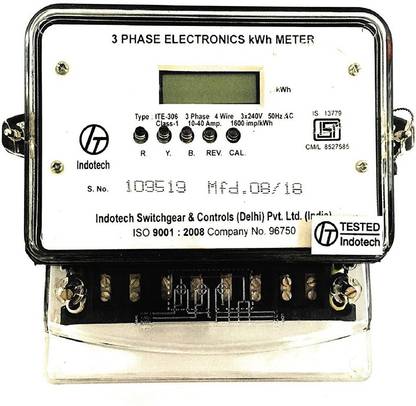

Indotech 3 Phase LCD Display Energy Sub Meter 10-40 ampere Metal Electrical Box

Three Phase Counter Energy Meter Display: LCD Accuracy Class 1.0 Dimensions170x138x56 mm (lxbxh) ±5 mm Battery Not Available Standards Standard Reference IS 13779-1999, CBIP Report- 88 & IEC Connection Type 3 Phase 4 Wire Voltage Rating 3x240 V (P-N) Current Ratings - Reference (Max) 10(60)A Frequency 50Hz Starting Current 0.4% of Basic current Power Consumption Voltage Circuit:< 8VA Current Circuit:<2VA Operating Temperature-20°C to +55°C Max Operating Temperature-25°C to +70°C Relative Humidity<85% Insulation Resistance More than 5 M Ohms Dielectric Strength 2KV RMS for 1 Minute Anti Tamper Features ; 1. Phase neutral interchanged 2. Main & Load wire interchanged 3. Load Earthing 4. Neutral Missing 5. DC Immunity 6. External Magnetic Influence 7. Application of abnormal Voltage Frequency
