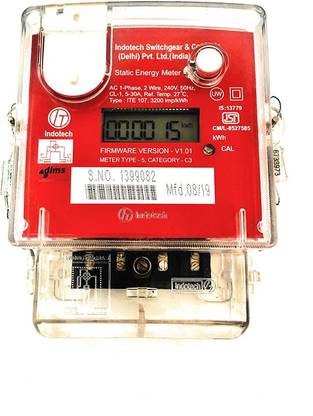

Indotech Electronic Energy Sub Meter AC Single Phase 2-Wire Static kWh Multi-Functin (LCD Type) Display (Class-1) 5-30 Amp With (ISI MARK) Metal Electrical Box

Indotech Electronic Energy Sub Meter AC Single Phase 2-Wire Static kWh Multi-Functin (LCD Type) Display (Class-1) 5-30 Amp With (ISI MARK) General :- DisplayLCD AccuracyClass 1.0 Dimensions170x138x56 mm (lxbxh) ±5 mm Battery5 Years Life StandardsStandard Reference IS 13779-1999, CBIP Report-88 &IEC Electric Parameters :- Connection Type1 Phase 2 Wire Voltage Rating240 V (P-N) Current Ratings - Reference (Max)2.5(10)A, 5(20)A, 5(30)A, 10(40)A, 10(60)A Frequency50Hz Starting Current0.4% of Basic current Power ConsumptionVoltage Circuit:< 8VA Current Circuit:<2VA Climate Condition:- Operating Temperature-20°C to +55°C Max Operating Temperature-25°C to +70°C Relative Humidity<85% Insulation ResistanceMore than 5 M Ohms Dielectric Strength2KV RMS for 1 Minute Anti Tamper Features :- 1. Phase neutral interchanged 2. Main & Load wire interchanged 3. Load Earthing 4. Neutral Missing 5. DC Immunity 6. External Magnetic Influence 7. Application of abnormal Voltage Frequency 8. A total of 32 tamper other known tamper conditions Immune to any known tamper More than 100 parameters on display View data using mobile application
