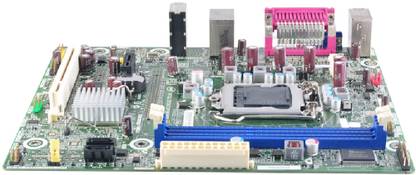

Intel DH61SA LGA 1155Socket Micro-ATX Chipset DDR3 Motherboard for Desktop

Price: Not Available

Currently Unavailable

Warranty

Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com

Highlights

Specifications

Back Panel Ports

In The Box

Sales Package

Desktop Board, Quick Reference Guide, Configuration Label, Driver and Software CD, I/O Shield and SATA Cables

General Features

Hardware Monitoring	Hardware Monitoring through the Nuvoton Super I/O Controller, Voltage Sense to Detect out of Range Power Supply Voltages, Thermal Sense to Detect Out of Range Thermal Values, Two Fan Headers, Two Fan Sense Inputs used to Monitor Fan Activity, Fan Speed Control
BIOS	Intel BIOS Resident in the SPI Flash Device, Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, SMBIOS
Features	ENERGY STAR 5.0, e-Standby, ErP Compliance
Advanced Technologies	Intel Fast Boot Technology
Advanced Features	Fan Monitoring and Control, Thermal and Voltage Monitoring, Chassis Intrusion Detection

Warranty

Domestic Term	3 Years Intel India Warranty and Free Transit Insurance.
Warranty Summary	Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
Covered in Warranty	Manufacturing Defects / Dead on Arrival
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In

Memory

Dimensions

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1155
Compatible Processors	2nd Generation Intel Core i7 Processor, Intel Core i7 Processor, Intel Core i5 Processor, Intel Core i3 Processor, Intel Pentium Processor, Intel Celeron Processor, Intel Xeon Processor
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card

Storage

SATA 3 Gb/s

Expansion Slots

PCI Slots	1
PCIe x1 Slots, Generation	1, 2

General

Brand	Intel
Model ID	DH61SA
Designed For	Desktop
Packaging	BOX
Key Features	Micro-ATX Form Factor, LGA 1155 Socket Type, Intel H61 Express, 2 Memory Slots, Maximum 8 GB DDR3, Dual Channel DIMM Memory, 2 SATA 3 Gb/s Headers with Intel H61 Express Chipset

Connectivity

Ethernet Controller	Intel 82579V
Ethernet Features	10/100/1000 Mbits/s LAN Subsystem

Audio

Internal I/o Headers

SATA 3 Gb/s Headers	2
USB 2.0 Headers	2
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	2
Other Connectors	S/PDIF Header, 12 V Processor Core Voltage Connector, Low Pin Count (LPC) Debug Header, Main Power Connector (2 x 12), Serial Port Header
