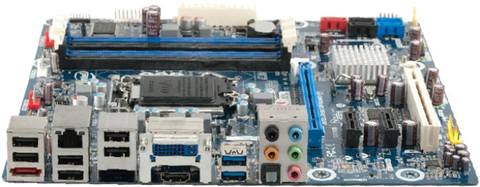

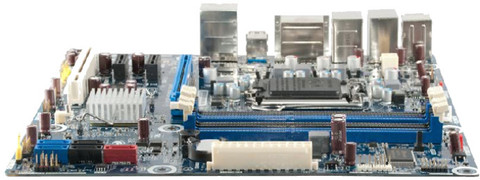

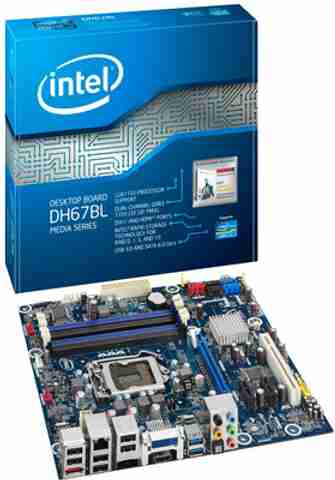

    Intel DH67BL with i3-2100 Processor LGA 1155Socket Micro-ATX Intel H67 Chipset DDR3 Motherboard for Desktop

    Intel DH67BL with i3-2100 Processor LGA 1155Socket Micro-ATX Intel H67 Chipset DDR3 Motherboard for Desktop

    Price: Not Available
    Currently Unavailable
    Warranty
    Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
    Highlights
    • Suitable For Desktop
    • Intel H67
    • Data Rate DDR3
    • Maximum RAM Capacity 32
    • Form Factor: Micro-ATX
    Specifications
    General
    Brand
    • Intel
    Model ID
    • DH67BL with i3-2100 Processor
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • LGA 1155
    Compatible Processors
    • Intel Core i3 Processor with up to 95W TDP, Intel Core i5 Processor, Intel Core i7 Processor
    Chipset
    • Intel H67
    Chipset Manufacturer
    • Intel
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 32 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1066 MHz, 1333 MHz
    Graphics
    External Graphics Card Support
    • Yes
    Audio
    Audio Codec
    • Realtek ALC892
    Connectivity
    Ethernet Controller
    • Intel 82579V
    Ethernet Features
    • 10/100/1000 Mbits/sec LAN subsystem
    Number of FireWire Ports
    • 1
    Expansion Slots
    PCI Slots
    • 1
    PCIe x1 Slots, Generation
    • 2
    PCIe x16 Slots, Generation
    • 1, 2
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 2
    SATA 6 Gb/s Headers
    • 2
    USB 2.0 Headers
    • 4
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 1 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x Rear Chassis Fan Header, 1 IR port, 1 x Back Panel Header, S/PDIF Out, 1 x Front Panel Audio Header, 1 x eSATA Header, 1 x Low Pin Count Header
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 6
    USB 3.0 Ports, Controller
    • 2
    eSATA Ports, Controller
    • 1
    HDMI Ports
    • 1
    IEEE 1394a Ports
    • 1
    DVI Ports
    • 1
    Audio I/O Channels
    • 5
    Optical S/PDIF Ports and S/PDIF Out ports
    • 1 (Optical S/PDIF Ports)
    RJ-45 Ethernet Jacks
    • 1
    General Features
    Hardware Monitoring
    • Hardware Monitoring through the Nuvoton I/O Controller Voltage Sense to Detect out of Range Power Supply Voltages Thermal Sense to Detect out of Range Thermal Values Two Fan Sense Inputs used to Monitor Fan Activity Fan Speed Control
    BIOS
    • Intel BIOS Resident in the SPI Flash Device Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
    Limitations
    • External Graphics Card Required (Not Included in the Box)
    Dimensions
    Dimensions
    • 243.84 x 243.84 mm
    Warranty
    Domestic Term
    • 3 Years Intel India Warranty and Free Transit Insurance.
    Warranty Summary
    • Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
    Covered in Warranty
    • Manufacturing Defects / Dead on Arrival
    Not Covered in Warranty
    • Forceful Tampering, Burnt, Mishandling and Physical Damage
    Warranty Service Type
    • Carry In
