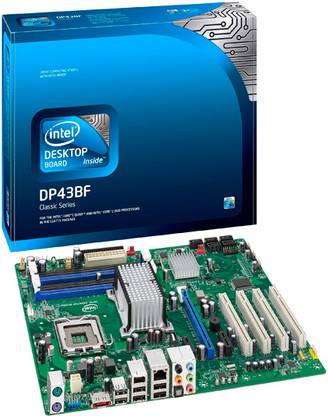

    Intel DP43BF LGA 775Socket ATX Intel P43 Chipset DDR3 Motherboard for Desktop

    Intel DP43BF LGA 775Socket ATX Intel P43 Chipset DDR3 Motherboard for Desktop

    Price: Not Available
    Currently Unavailable
    Warranty
    Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
    Highlights
    • Suitable For Desktop
    • Intel P43
    • Data Rate DDR3
    • Maximum RAM Capacity 8
    • Form Factor: ATX
    Specifications
    General
    Brand
    • Intel
    Model ID
    • DP43BF
    Essentials
    Form Factor
    • ATX
    Socket Type
    • LGA 775
    Compatible Processors
    • Intel Core2 Duo Desktop PrO.Cessor, Quad-Core Intel Xeon PrO.Cessor, Intel Celeron Dual-Core PrO.Cessor, Dual-Core Intel Xeon PrO.Cessor, Intel Core2 Quad PrO.Cessor, Intel Pentium Desktop PrO.Cessor, Intel Celeron Desktop PrO.Cessor, Intel mXeon PrO.Cessor 3000 sequence, Intel Celeron PrO.Cessor, Intel Xeon PrO.Cessor, Intel Core2 Quad Desktop PrO.Cessor
    Chipset
    • Intel P43, Intel ICH10R
    Chipset Manufacturer
    • Intel
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 8 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1333(O.C) MHz, 800 MHz, 1066 MHz
    ECC Support
    • Non-ECC
    Buffered Memory
    • Unbuffered
    Storage
    SATA 3 Gb/s
    • Intel ICH10R
    RAID Configurations
    • 0, 1, 5, 10
    PATA Ultra DMA
    • 1
    Graphics
    Integrated Graphics card
    • No
    Audio
    Audio Codec
    • Realtek ALC888S-VC
    Audio Features
    • High Definition Audio
    Connectivity
    Ethernet Controller
    • Broadcom BCM57788 Gigabit
    Ethernet Features
    • CSMA/CD protO.Col engine, ACPI technology support, LAN wake capabilities, LAN subsystem software
    Number of FireWire Ports
    • 1
    Expansion Slots
    PCI Slots
    • 4
    PCIe x1 Slots, Generation
    • 2
    PCIe x4 Slots, Generation
    • 0
    PCIe x8 Slots, Generation
    • 0
    PCIe x16 Slots, Generation
    • 1
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 5
    Fan Headers
    • 1 (Processor Fan Headers), 2 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x S/PDIF Header, 1 x Serial Port Header
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 12
    eSATA Ports, Controller
    • 1
    IEEE 1394a Ports
    • 2
    Audio I/O Channels
    • 6
    Optical S/PDIF Ports and S/PDIF Out ports
    • 1 (Optical S/PDIF Ports)
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 2
    General Features
    Hardware Monitoring
    • Hardware monitoring includes - Fan speed controllers and sensors integrated into the Intel ICH10R, Remote thermal diode sensor for ambient temperature sensing, Thermal sensors in the PrO.Cessor, Intel 82P43 MCH, and Intel 82801JIR (Intel thermally monitored closed-loop fan control, for all three fansICH10R), Power supply monitoring of five voltages (+5 V, +12 V, +3.3 V, +1.125 V and +VCCP), Thermally monitored closed-loop fan control, for all three fans
    BIOS
    • Intel BIOS, Support for Advanced Configuration and Power Interface (ACPI) and SMBIOS
    Features
    • and ErP compliance, e-Standby, ENERGY STAR 5.0, Error messages and beep codes
    Advanced Technologies
    • Intel Remote Wake Technology, Intel HD Audio Technology, Intel Matrix Storage Technology
    Advanced Features
    • Fan monitoring and control, Thermal and voltage monitoring, Chassis intrusion detection
    Limitations
    • External Graphics Card required (not included in the box)
    Dimensions
    Dimensions
    • 243.84 x 294.64 mm
    Warranty
    Domestic Term
    • 3 Years Intel India Warranty and Free Transit Insurance.
    Warranty Summary
    • Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
    Covered in Warranty
    • Manufacturing Defects / Dead on Arrival
    Not Covered in Warranty
    • Forceful Tampering, Burnt, Mishandling and Physical Damage
    Warranty Service Type
    • Carry in
