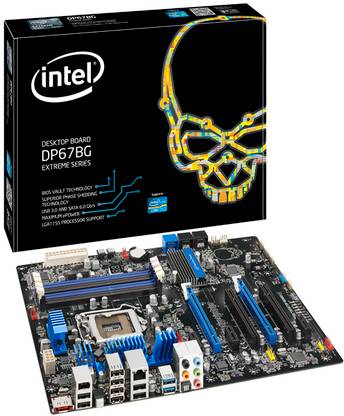

Intel DP67BG LGA 1155Socket ATX Intel P67 Chipset DDR3 Motherboard for Desktop

Price: Not Available

Currently Unavailable

Warranty

Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com

Highlights

Suitable For Desktop
Intel P67
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

General

Brand	Intel
Model ID	DP67BG

Essentials

Form Factor	ATX
Socket Type	LGA 1155
Compatible Processors	Intel Core i7, Intel Core i3 processors, Intel Core i5
Chipset	Intel P67
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1600 MHz, 1333 MHz
ECC Support	Yes

Storage

RAID Configurations

0, 1, 5, 10

Graphics

Integrated Graphics card	No
Multi GPU Support	Yes, ATI CrossfireX,NVIDIA SLI

Audio

Audio Codec

Realtek ALC892

Connectivity

Ethernet Controller	Intel 82579V Gigabit
Ethernet Features	10/100/1000 Mbits/sec LAN subsystem
Number of FireWire Ports	1
Wireless and Bluetooth	Optional

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	2, 3
PCIe x16 Slots, Generation	1, 2

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	2
USB 2.0 Headers	3
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Rear Chassis Fan Header, 1 x Front Chassis Fan Header, 1 x Front Panel Audio Header, Onboard Reset and Power Button, 1 x Auxillary Chassis Fan Header

Back Panel Ports

USB 2.0 Ports, Controller	8
USB 3.0 Ports, Controller	2
eSATA Ports, Controller	1
IEEE 1394a Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1

General Features

Hardware Monitoring

Hardware monitoring and fan control through the Nuvoton I/O controller Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Four fan headers using PWM control Four fan sense inputs used to monitor fan activity Fan speed control using voltage control (4-pin fan headers front, rear, and auxiliary) with selectable support in BIOS for 3 wire fans Support for Platform Environmental Control Interface (PECI)

BIOS

Intel BIOS resident in the SPI Flash device Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS

Limitations

External Graphics Card required (not included in the box)

Dimensions

243.84 x 304.8 mm

Warranty

Domestic Term	3 Years Intel India Warranty and Free Transit Insurance.
Warranty Summary	Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
Covered in Warranty	Manufacturing Defects / Dead on Arrival
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In
