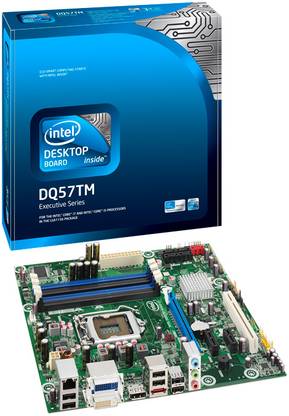

    Intel DQ57TM LGA 1156Socket Micro-ATX Intel Q57 Chipset DDR3 Motherboard for Desktop

    Intel DQ57TM LGA 1156Socket Micro-ATX Intel Q57 Chipset DDR3 Motherboard for Desktop

    Price: Not Available
    Currently Unavailable
    Warranty
    Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
    Highlights
    • Suitable For Desktop
    • Intel Q57
    • Data Rate DDR3
    • Maximum RAM Capacity 16
    • Form Factor: Micro-ATX
    Specifications
    General
    Brand
    • Intel
    Model ID
    • DQ57TM
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • LGA 1156
    Compatible Processors
    • Intel Core i7, Intel Core i5, Intel Core i3, Intel Pentium, Intel Xeon (3400) processors with up to 95 W TDP
    Chipset
    • Intel Q57
    Chipset Manufacturer
    • Intel
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 16 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1066 MHz, 1333 MHz
    ECC Support
    • No
    Buffered Memory
    • Unbuffered
    Storage
    RAID Configurations
    • 0, 1, 5, 10, Matrix
    Graphics
    Integrated Graphics card
    • No
    Multi GPU Support
    • No
    Audio
    Audio Codec
    • Realtek ALC662
    Connectivity
    Ethernet Controller
    • Intel 82578DM
    Ethernet Features
    • 10/100/1000 Mbits/sec LAN subsystem
    Expansion Slots
    PCI Slots
    • 1
    PCIe x1 Slots, Generation
    • 2, 2
    PCIe x16 Slots, Generation
    • 1, 2
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 4
    USB 2.0 Headers
    • 4
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 2 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x Serial Port Header, 1 x S/PDIF Header, Front Panel Audio Header
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 6
    eSATA Ports, Controller
    • 1
    DVI Ports
    • 1
    Audio I/O Channels
    • 3
    RJ-45 Ethernet Jacks
    • 1
    General Features
    Hardware Monitoring
    • Intel Quiet System Technology implemented through Intel Management Engine in the Intel Q57 PCH Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Three fan headers using PWM control 4-pin headers for prO.Cessor, front, and rear fans 4-wire and 3-wire (linear) fan speed control support for front and rear fans Support for Platform Environmental Control Interface (PECI)
    BIOS
    • Intel BIOS resident in the SPI Flash device Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
    Features
    • Dual Display Capable
    Limitations
    • Requires a PrO.Cessor with Intel Graphics Technology
    Dimensions
    Dimensions
    • 243.84 x 243.84 mm
    Warranty
    Domestic Term
    • 3 Years Intel India Warranty and Free Transit Insurance.
    Warranty Summary
    • Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
    Covered in Warranty
    • Manufacturing Defects / Dead on Arrival
    Not Covered in Warranty
    • Forceful Tampering, Burnt, Mishandling and Physical Damage
    Warranty Service Type
    • Carry In
