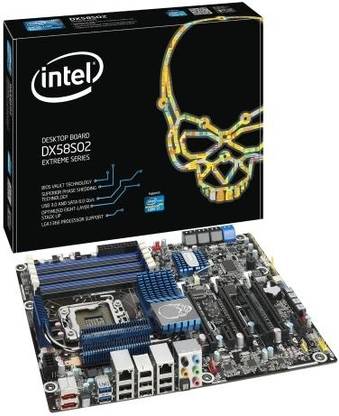

Intel DX58SO2 LGA 1366Socket ATX Intel X58 Chipset DDR3 Motherboard for Desktop

Price: Not Available

Currently Unavailable

Warranty

Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com

Highlights

Suitable For Desktop
Intel X58
Data Rate DDR3
Maximum RAM Capacity 24
Form Factor: ATX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	6
USB 3.0 Ports, Controller	2
eSATA Ports, Controller	2, Marvel 88SE6121
IEEE 1394a Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	2

General Features

Hardware Monitoring	Hardware monitoring and fan control ASIC Heceta 6P Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Four fan headers using PWM control Three fan sense inputs used to monitor fan activity Fan speed control using voltage control (4-pin fan headers, front and rear) Support for Product Environmental Control Interface (PECI)
BIOS	Intel BIOS resident in the Serial Peripheral Interface (SPI) Flash device Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and System Management BIOS (SMBIOS)

Warranty

Domestic Term	3 Years Intel India Warranty and Free Transit Insurance.
Warranty Summary	Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
Covered in Warranty	Manufacturing Defects / Dead on Arrival
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In

Memory

Number of Memory Slots	6 Slots
Memory Configuration	24 DDR3 Triple Channel DIMM
Memory Frequency	1066 MHz, 1333 MHz, 1600 MHz, 1860 MHz
ECC Support	Yes

Dimensions

243.84 x 304.8 mm

Essentials

Form Factor	ATX
Socket Type	LGA 1366
Compatible Processors	Intel Core i7 PrO.Cessor, Intel Xeon processors
Chipset	Intel X58, ICH10R
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card	No
Multi GPU Support	Yes, ATI CrossfireX,NVIDIA SLI

Storage

SATA 3 Gb/s	ICH10R
SATA 6 Gb/s	Marvel 88SE9128
RAID Configurations	Supported

Expansion Slots

PCI Slots	1
PCIe x1 Slots, Generation	2, 1.1
PCIe x16 Slots, Generation	3, 2

General

Brand	Intel
Model ID	DX58SO2
Designed For	Desktop
Key Features	ATX Form Factor, LGA1366 Socket Type, Intel X58, ICH10R, 6 Memory Slots, Maximum 24 GB DDR3, Triple Channel DIMM Memory, 2 SATA 6Gb/s Headers with Marvel 88SE9128 Controller

Connectivity

Ethernet Controller	Intel 82574L Gigabit
Ethernet Card	Intel 82567L
Ethernet Features	10/100/1000 Mbits/sec LAN subsystem
Number of FireWire Ports	1

Audio

Audio Codec

Realtek ALC892

Internal I/o Headers

SATA 3 Gb/s Headers	6
SATA 6 Gb/s Headers	2
USB 2.0 Headers	4
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Front Panel Audio Header, 1 x S/PDIF Header, 1 x Rear Chassis Fan Header, 1 x Back Panel Header, 1 x Auxillary Chassis Fan Header, 1 Onboard Reset Button, 1 x Onboard Power Button, IR Port

Ratings & Reviews

★

5 Ratings &

1 Reviews

5★
4★
3★
2★
1★

Its Good.

Its meant for hardcore gamers and overclockers. As far as i can work out, its ideal for the job and looks AMAZING! one glance at it makes you know that this is what you wanted to have all this while!

The box comes with a mouse pad and some stickers, along with the motherboard, 6 SATA cables, a WIFI and bluetooth module which directly gets plugged into the USB port on the motherboard.

Harsh Ranjan

Certified Buyer

Feb, 2012
