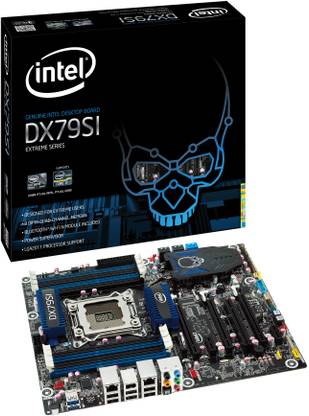

    Intel DX79SI LGA 2011Socket ATX Intel X79 Chipset DDR3 Motherboard for Desktop

    Intel DX79SI LGA 2011Socket ATX Intel X79 Chipset DDR3 Motherboard for Desktop

    Price: Not Available
    Currently Unavailable
    Warranty
    Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
    Highlights
    • Suitable For Desktop
    • Intel X79
    • Data Rate DDR3
    • Maximum RAM Capacity 64
    • Form Factor: ATX
    Specifications
    General
    Brand
    • Intel
    Model ID
    • DX79SI
    Essentials
    Form Factor
    • ATX
    Socket Type
    • LGA 2011
    Compatible Processors
    • Intel Core i7 Extreme Processor, Intel Core i7 Processors
    Chipset
    • Intel X79
    Chipset Manufacturer
    • Intel
    Memory
    Number of Memory Slots
    • 8 Slots
    Memory Configuration
    • 64 DDR3 Quad Channel DIMM
    Memory Frequency
    • 1866 MHz, 2400 MHz, 1066 MHz, 2133 MHz, 1600 MHz, 1333 MHz
    ECC Support
    • ECC
    Buffered Memory
    • Unbuffered
    Storage
    SATA 3 Gb/s
    • Intel X79 Express
    SATA 6 Gb/s
    • Intel X79 Express
    RAID Controller
    • Intel X79 Express
    RAID Configurations
    • 0, 1, 5, 10
    Audio
    Audio Codec
    • Realtek ALC892
    Audio Features
    • High Definition Audio, Audio subsystem with five analog audio outputs
    Connectivity
    Ethernet Controller
    • Intel 82574L Gigabit, Intel 82579L
    Ethernet Features
    • 10/100/1000 Mbits/sec LAN subsystem
    Number of FireWire Ports
    • 1
    Wireless and Bluetooth
    • Ralink WiFi 802.11 (RT8070) and CSR Bluetooth module (BC0401PC08)
    Expansion Slots
    PCI Slots
    • 1
    PCIe x1 Slots, Generation
    • 2
    PCIe x16 Slots, Generation
    • 3
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 4
    SATA 6 Gb/s Headers
    • 2
    USB 2.0 Headers
    • 4
    USB 3.0 Headers
    • 1
    Fan Headers
    • 1 (Processor Fan Headers), 2 (System Fan Headers)
    Front Panel Headers
    • 1
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 14
    USB 3.0 Ports, Controller
    • 4, NEC UPD720200
    IEEE 1394a Ports
    • 1
    Audio I/O Channels
    • 6
    Optical S/PDIF Ports and S/PDIF Out ports
    • 1 (Optical S/PDIF Ports)
    RJ-45 Ethernet Jacks
    • 1
    General Features
    Overclocking
    • Support for advanced over clO.Cking
    Hardware Monitoring
    • Hardware monitoring and fan control through the Nuvoton I/O controller, Hardware Monitoring includes - Voltage sense to detect out of range power supply voltages, Thermal sense to detect out of range thermal values, Four fan headers using PWM control, Four fan sense inputs used to monitor fan activity, Fan speed control using voltage control (4-pin fan headers for prO.Cessor, front, rear, and auxiliary) with selectable support in BIOS for 3 wire fans, Support for Platform Environmental Control Interface (PECI)
    BIOS
    • Intel BIOS resident in the SPI Flash device, Support for Advanced Configuration and Power Interface (ACPI), Plug and Play and SMBIOS, Fast Boot
    Features
    • e-Standby, ENERGY STAR 5.0, ErP Compliance
    Advanced Technologies
    • Intel Rapid Storage Technology, Intel Remote Wake Technology, Intel HD Audio Technology
    Limitations
    • External Graphics Card required (not included in the box)
    Dimensions
    Dimensions
    • 243.84 x 304.8 mm
    Warranty
    Domestic Term
    • 3 Years Intel India Warranty and Free Transit Insurance.
    Warranty Summary
    • Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
    Covered in Warranty
    • Manufacturing Defects / Dead on Arrival
    Not Covered in Warranty
    • Forceful Tampering, Burnt, Mishandling and Physical Damage
    Warranty Service Type
    • Carry In
