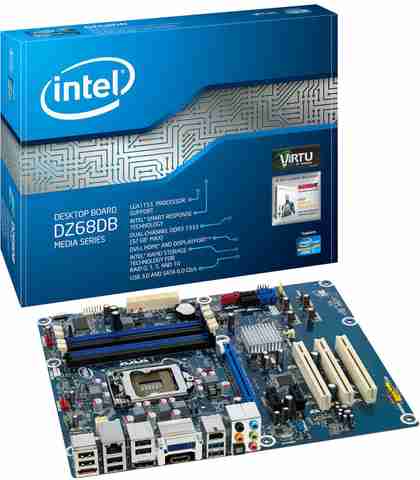

Intel DZ68DB LGA 1155Socket ATX Chipset DDR3 Motherboard for Desktop

Price: Not Available

Currently Unavailable

Warranty

Customer Contacts:compu.doctorchennai@gmail.com ,Ph:9840049350

Highlights

Specifications

General

Brand	Intel
Model ID	DZ68DB

Essentials

Form Factor	ATX
Socket Type	LGA 1155
Compatible Processors	Intel Core i7, Intel Core i5, Intel Core i3, Pentium, Celeron, Intel Xeon processors Series with upto 65W TDP
Chipset Manufacturer	Intel

Memory

Storage

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Lucidlogix Virtu GPU Virtualization

Audio

Audio Codec	Realtek ALC892
Audio Channels	10
Audio Features	Front panel audio header with support for Intel HD Audio and AC 97 Audio Five analog audio jacks on the back panel Onboard S/PDIF out header and back panel optical S/PDIF out connector 8-channel (7.1) Intel HD Audio via the HDMI interface

Connectivity

Expansion Slots

Internal I/o Headers

SATA 3 Gb/s Headers	2
SATA 6 Gb/s Headers	2
USB 2.0 Headers	4
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Front Chassis Fan Header, Consumer IR Unit, S/PDIF Out Header, 1 x Front Panel Audio Header, 1 x Rear Chassis Fan Connector

Back Panel Ports

USB 2.0 Ports, Controller	6
USB 3.0 Ports, Controller	2
eSATA Ports, Controller	1
HDMI Ports	1
IEEE 1394a Ports	1
DVI Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (S/PDIF Out Ports)
RJ-45 Ethernet Jacks	1

General Features

Hardware Monitoring	Hardware monitoring through the Nuvoton I/O controller Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Two fan headers Two fan sense inputs used to monitor fan activity Fan speed control
BIOS	Intel BIOS resident in the SPI Flash device Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS Unified Extensible Firmware Interface (UEFI) to support hard disk drives larger than 2 TB

Dimensions

Warranty

Domestic Term	3 Years Intel India Warranty and Free Transit Insurance.
Warranty Summary	Customer Contacts:compu.doctorchennai@gmail.com ,Ph:9840049350
Covered in Warranty	Manufacturing Defects / Dead on Arrival
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In 1 Year
