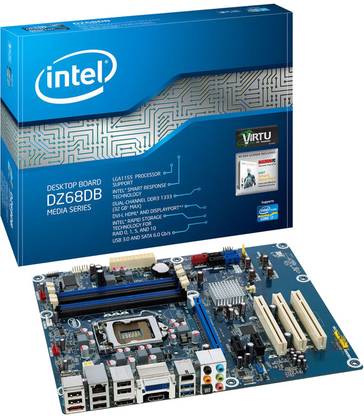

Intel DZ68DB LGA 1155Socket ATX Chipset DDR3 Motherboard for Desktop

Price: Not Available

Currently Unavailable

Warranty

Customer Contacts:compu.doctorchennai@gmail.com ,Ph:9840049350

Highlights

Suitable For Desktop
Data Rate DDR3
Maximum RAM Capacity 32 GB
Form Factor: ATX

Specifications

General

Brand	Intel
Model ID	DZ68DB

Essentials

Form Factor	ATX
Socket Type	LGA 1155
Compatible Processors	Intel Core i7, Intel Core i5, Intel Core i3, Pentium, Celeron, Intel Xeon processors Series with upto 65W TDP
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 GB DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1333 MHz
ECC Support	No

Storage

SATA 3 Gb/s	Intel Z68
SATA 6 Gb/s	Intel Z68
RAID Configurations	0, 1, 5, 10

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Lucidlogix Virtu GPU Virtualization

Audio

Audio Codec	Realtek ALC892
Audio Channels	10
Audio Features	Front panel audio header with support for Intel HD Audio and AC 97 Audio Five analog audio jacks on the back panel Onboard S/PDIF out header and back panel optical S/PDIF out connector 8-channel (7.1) Intel HD Audio via the HDMI interface

Connectivity

Ethernet Controller	Intel 82579V
Ethernet Features	10/100/1000 Mbits/sec LAN subsystem
Number of FireWire Ports	1

Expansion Slots

PCI Slots	3
PCIe x1 Slots, Generation	2, 2
PCIe x16 Slots, Generation	1, 2

Internal I/o Headers

SATA 3 Gb/s Headers	2
SATA 6 Gb/s Headers	2
USB 2.0 Headers	4
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Front Chassis Fan Header, Consumer IR Unit, S/PDIF Out Header, 1 x Front Panel Audio Header, 1 x Rear Chassis Fan Connector

Back Panel Ports

USB 2.0 Ports, Controller	6
USB 3.0 Ports, Controller	2
eSATA Ports, Controller	1
HDMI Ports	1
IEEE 1394a Ports	1
DVI Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (S/PDIF Out Ports)
RJ-45 Ethernet Jacks	1

General Features

Hardware Monitoring	Hardware monitoring through the Nuvoton I/O controller Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Two fan headers Two fan sense inputs used to monitor fan activity Fan speed control
BIOS	Intel BIOS resident in the SPI Flash device Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS Unified Extensible Firmware Interface (UEFI) to support hard disk drives larger than 2 TB

Dimensions

294.64 x 243.84 mm

Warranty

Domestic Term	3 Years Intel India Warranty and Free Transit Insurance.
Warranty Summary	Customer Contacts:compu.doctorchennai@gmail.com ,Ph:9840049350
Covered in Warranty	Manufacturing Defects / Dead on Arrival
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In 1 Year

Ratings & Reviews

4.1

★

51 Ratings &

5 Reviews

5★
4★
3★
2★
1★

best budget z68 mobo

its the cheapest z68 board in intel family!! and also cheaper than other z68 boards of other companies too...
since its a z68 board, so it gives the buyer assurity for ivy bridge upgrade in coming months!!
pros:
z68 architecture
usb 3.0
4 memory slots upto 32gb
ivy bridge upgrade in future

cons:
not much
just its not a multi gpu mobo!! so a big No to sli or crossfire
not a very great mobo for overclocking, but not too bad also!! just nsolves the overclocking purpose on the line!!

Except d...

ujjwal mishra

Feb, 2012

Permalink

Report Abuse

Fabulous!

Few Months ago I Purchased a Motherboard Intel Original, I received the Product and using it, Product is genuine and service of seller is excelent

SAMEER KUMAR

Certified Buyer, Bhopal

Feb, 2017

Permalink

Report Abuse

BEWARE OF USED MOTHER BOARD

I HAD PURCHASE 4 MOTHERBOARD THROUGH THIS YEAR THIS IS FIRST TIME
I GOT OPEN "INTEL SEAL TAG TEAR" MOTHER BOARD I AM SURE THIS MOTHER
BOARD WAS USED PREVIOUSLY BECAUSE OF MY EXPERIENCE EYES.I DID THIS JOB LAST 12 YEAR.BUT THE BOARD IS WORKING SO THAT I DID NOT COMPLAIN
FLIP KART BUT FLIPKART SHOULD CAREFUL THESE TYPE OF SELLER.OTHER WISE
THEY LOOSE THEIR GOOD WILL.

tarun bera

Certified Buyer, Kolkata

Jun, 2014

Permalink

Report Abuse

Second Hand Motherboard Provided

Flipkart is the most Trusted brand in India for Online shopping, and genuine Product fast Delivery. but first time I disappointed with my Order, they delivered me a Second hand Motherboard Intel DZ68DB Motherboard, Its look like its directly came from service center.
BOX is Old Motherboard Driver CD is Scratched driver CD Packet is not sealed. because of my Urgency. Thanks Flipkart For Fast delivery and disappointment for Seller.

dear Flipkart Please Open a division for QA (External Sheller)

NIRMAL SANTRA

Certified Buyer, Howrah

Apr, 2015

Permalink

Report Abuse

Worthless

Never buy from flip kart anything I bought this mobo nd seller give me used one I tried to return but seller reject n flipkart did nothing ...

Certified Buyer, Junagadh

Jun, 2017

Permalink

Report Abuse

All 5 reviews
