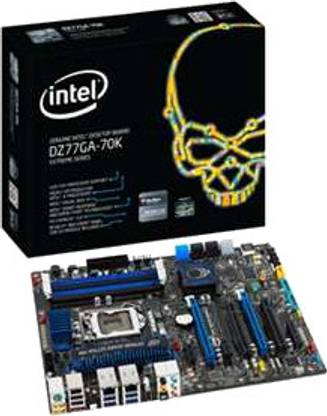

Intel DZ77GA-70K LGA 1155Socket ATX Intel Z77 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com

Highlights

Specifications

General

Brand	Intel
Model ID	DZ77GA-70K

Essentials

Form Factor	ATX
Socket Type	LGA 1155
Compatible Processors	2nd Generation Intel Core i3 Processors, Intel Core i5 Desktop Processors, Intel Celeron Desktop Processor, 2nd Generation Intel Core i5 Processors, Intel Core i7 K Processors, 3rd Generation Intel Core i7 Processors, Intel Core i3 Desktop Processors, 2nd Generation Intel Core i7 Processors, 3rd Generation Intel Core i5 Processors, 3rd Generation Intel Core i3 Processors, Intel Core i7 Desktop Processors, Intel Xeon Processor, Intel Pentium Desktop Processors
Chipset	Intel Z77
Chipset Manufacturer	Intel

Memory

Storage

Graphics

Integrated Graphics card	Yes
External Graphics Card Support	Yes

Audio

Audio Codec	Realtek ALC898
Audio Features	Supports Dolby Home Theatre V4, High Definition Audio

Connectivity

Ethernet Controller	Intel 82579
Ethernet Features	10/100/1000 Mbps
Number of FireWire Ports	1
Wireless and Bluetooth	Ralink WiFi 802.11 (RT8070) and CSR Bluetooth Module (BC0401PC08)

Expansion Slots

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	4
USB 2.0 Headers	4
USB 3.0 Headers	2
Fan Headers	1 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers	1
Other Connectors	Back Panel Connectors, S/PDIF Out Header, 12 V Processor Core Voltage Connector (2 x 4 pin), Main Power Connector (2 x 12)

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	4, Intel Z77 Express Chipset
eSATA Ports, Controller	Marvel 88SE9172, 1
HDMI Ports	1
IEEE 1394a Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	2
PS/2	1

General Features

Hardware Monitoring	Processor and System Ambient Temperature Monitoring, Chassis Fan Speed Monitoring, Power Monitoring, SMBus Interface
OS Support	Windows XP and Above
BIOS	Intel BIOS Resident in the SPI Flash Device, Support for Advanced Configuration and Power Interface (ACPI), Plug and Play and SMBIOS
Features	e-Standby, ENERGY STAR 5.0, ErP Compliance
Advanced Technologies	Intel Fast Boot Technology, Intel Rapid Storage Technology

Dimensions

Warranty

Domestic Term	3 Years Intel India Warranty and Free Transit Insurance.
Warranty Summary	Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
Covered in Warranty	Manufacturing Defects / Dead on Arrival
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In
