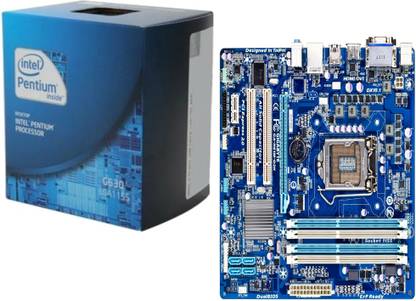

Intel/Gigabyte Intel Pentium Processor G630 and Gigabyte GA-H61M-D2H Motherboar Combo Motherboard

Intel/Gigabyte Intel Pentium Processor G630 and Gigabyte GA-H61M-D2H Motherboar Combo Motherboard

Price: Not Available
Currently Unavailable
Warranty
3 Years Domestic Warranty
Highlights
  • 4 Memory Slots
  • Micro-ATX Form Factor
  • Non ECC Supported Memory
  • 16 GB DDR3 Memory
Specifications
In The Box
Sales Package
  • Intel- Processor, Heat Sink with Fan Molded, Warranty Card, Manuals: Gigabyte - Motherboard, Manual, Sata Cable, Rear I/O Panel Shield, Driver CD
General
Brand
  • Intel/Gigabyte
Model ID
  • Intel Pentium Processor G630 and Gigabyte GA-H61M-D2H Motherboar
Essentials
Form Factor
  • Micro-ATX
Processor
Processor
  • 2.7 Intel Pentium Processor G630
Chipset Manufacturer
  • Intel
Chipset
  • Intel H61
Memory
Number of Slots
  • 4 Slots
Memory Configuration
  • 16 GB DDR3 Dual Channel DIMM
Memory Frequency
  • 1066 MHz, 800 MHz, 1333 MHz
ECC Support
  • Non-ECC
Storage
SATA 3 Gb/s
  • Intel H61 Express
Graphics
Integrated Graphics card
  • Yes
Audio
Audio Codec
  • Realtek ALC889
Audio Channels
  • 3
Audio Features
  • High Definition Audio
Connectivity
Ethernet Controller
  • Atheros 8151
Ethernet Features
  • 10/100/1000 Mbits/sec
Expansion Slots
PCI Slots
  • 2
PCIe x1 Slots, Generation
  • 2.0, 1
PCIe x16 Slots, Generation
  • 2.0, 1
Internal I/o Headers
SATA 3 Gb/s Headers
  • 4
USB 2.0 Headers
  • 2
ATX Power Connectors
  • 1 (24 Pin ATX Power Connectors)
Fan Headers
  • 1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers
  • 2
Back Panel Ports
USB 2.0 Ports, Controller
  • 4
HDMI Ports
  • 1
DVI Ports
  • 1
VGA/D Sub Ports
  • 1
RJ-45 Ethernet Jacks
  • 1
PS/2
  • 2
General Features
Hardware Monitoring
  • System Voltage Detection, CPU/System Temperature Detection, CPU/System Fan Speed Detection, CPU/System Fan Speed Control
Bundled Software
  • Norton Internet Security (OEM Version)
BIOS
  • 2 x 32 Mbit Flash, Use of Licensed AWARD BIOS, Support for Dual BIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Advanced Technologies
  • Power Pak MOSFET, Ferrite Core Choke, 4-layer, DualBIOS 3 TB and HDD Support (Hybrid EFI Technology), 50,000 Hours Japanese Solid Capacitors, On/Off Charge Technology, 108 dB Signal-to-noise Ratio Playback, Smart 6 Smarter PC System Management: Smart Quick Boot, Smart Recovery 2, Smart Recorder, Smart Time Lock, Auto Green, ErP Lot 6 Support, GIGABYTE Touch BIOS (Patent Pending)
Advanced Features
  • Heatsink for North Bridge Chipset, Support for Q-Flash, Support for Xpress BIOS Rescue, Support for Download Center, Support for Xpress Install, Support for Xpress Recovery 2, Support for Easy Tune, Support for Smart 6, Support for Cloud OC, Support for Q-Share
Dimensions
Dimensions
  • 244 x 225 mm
Warranty
Warranty Summary
  • 3 Years Domestic Warranty
Service Type
  • Carry In
Domestic Term
  • 3 Years
Ratings & Reviews
3.1
7 Ratings &
2 Reviews
  • 5
  • 4
  • 3
  • 2
  • 1
  • 1
  • 3
  • 1
  • 0
  • 2
3

Intel processor and Gigabyte Motherboard

Here is my review on the combo product. They do match up nicely, but the manual of both intel and gigabyte come short of my expectation. I had AMD cpu before had very good manual and package but i fried it by overclocking it.
The Gigabyte motherboard lacks screws, cables and does not have a foam underneath the motherboard during the packaging, which i found it in my AMD motherboard (same gigabyte company). Looks like they have cut costs by it and i have to use my existing screws and cables t...
READ MORE

Gopinath Billavara Annu

Certified Buyer

Nov, 2012

1
1
Report Abuse
4

average + very costly..........................

I HAVE FOUND A BETTER COMBO OPTION THAN THIS If YOU BUY a Gigabyte GA-B75M-D3H Motherboard +Intel G530 PROCESSOR THIS WILL COST AROUND 6763 RS.. AND A HIGH PERFORMANCE WITH CUTE GRAPHICS, WHILE THIS COMBO ONLY GIVES SAME PROCESSING POWER THAN G530 AND NO USB 3.0 PORT AND SLOWER THAN GA 75 MOBO,
AND COST YOU MORE (6800+) THAN THE SUGGESTED COMBO
READ MORE

Mr.P.M.

Jan, 2013

2
0
Report Abuse
Be the first to ask about this product
