Kimaginations A2212/13T Brushless Motor 1000 kv BLDC Airplane Outrunner Brushless Motor (Multicolor)
Price: Not Available
Currently Unavailable
Highlights
- Fiber Glass Material
- No batteries Battery
- Rechargeable
- Width x Height: 30 mm x 40 mm
Description
Specifications:
- A2212 1000KV
- RPM/V :1000
- Stator Diameter(mm) :22
- Stator length(mm) : 13
- Stator Arms(mm) : 12
- Magnet Poles : 14
- Motor Winding : 22
- RPM(KV) : 1000
- Idle Current(A) : 0.55/8
- Max Current (A) : 17
- Max Power(W) : 190/3
- Rotor Dia(mm) : 28
- Shaft Dia(mm) : 3.17
- Motor Length(mm) : 28
- Overall Length(mm) : 42
- Biggest Thrust g/S : 1200/4

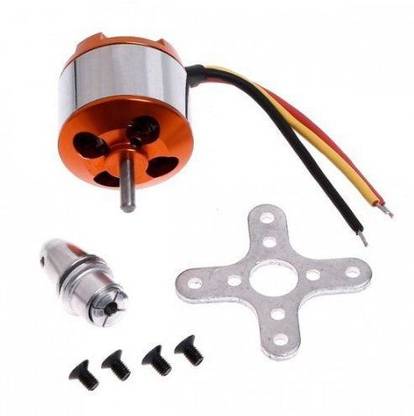

Comes with Prop adapter, Motor Mount and 4 screws; exactly as shown in the image.
Read More
Specifications
General
| Brand |
|
| Model Name |
|
| Sales Package |
|
| Skillset |
|
| Number Of Batteries |
|
| Minimum Age |
|
| Material |
|
| Battery Operated |
|
| Battery Type |
|
| Rechargeable |
|
| Type |
|
| Color |
|
| Maximum Age |
|
| Ideal For |
|
| Character |
|
| Net Quantity |
|
Dimensions
| Width |
|
| Height |
|
| Depth |
|
| Weight |
|
Ratings & Reviews
5
★
1 Ratings &
1 Reviews
- 5★
- 4★
- 3★
- 2★
- 1★
- 1
- 0
- 0
- 0
- 0
5
Must buy!
Its little costly then others
But giving a quality
READ MOREBut giving a quality
aamir khan
Certified Buyer, Bhopal
Jan, 2017
0
0
Report Abuse
Questions and Answers
Q:can it fly
A:Yes, it can. Just observe the weight limit and power rating chart.
Herojit Waikhom
Certified Buyer13
3
Report Abuse
Q:how many volt needed for run
A:12 volt or it having 11.1 volt lipo battery of 3s
Anonymous
Certified Buyer10
3
Report Abuse
Q:What's the difference between 10t and 13t
A:it is thrust between rotation 10t means low and 13t means high
Sundar Digambar More
Certified Buyer8
3
Report Abuse
Q:what is the difference between 1400kv and 2200kv
A:hi speed heavy load
Flipkart Customer
Certified Buyer2
0
Report Abuse
