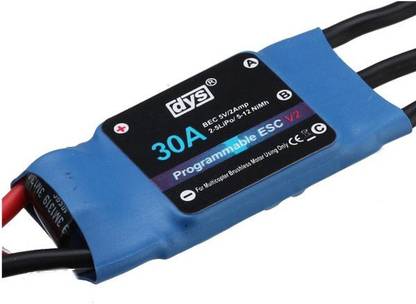

Kimaginations DYS 30A Brushless Speed Controller ESC Simonk Firmware for Multicopter  (Multicolor)

Brand Name:DYS Item NO.:MB30030 Model: 30A ESC Categories: Speed controller Specification: - Running current:30A(Output: Continuous 30A, Burst 40A up to 10 Secs.) - Input Voltage: DC 6-16.8V(2-4S Lixx) - BEC: 5V 2amp. - Size: 46mm (L) * 26mm (W) * 11mm (H). - Weight: 23g - With SimonK updated firmware for multicopter Features: - Drive tube and high-power Mos, and Mos tube plus a separate heat sink, Extreme low output resistance of the PCB(printed circuit board),super current endurance. - The power input uses extreme low output resistance greatly enhance the power stability, and has the protective effect on the battery. - Safety electrical function: when the power is turned on, regardless of the throttle stick in any position does not start the motor immediately, to avoid personal injury. - Separately voltage regulator IC for microprocessor. providing good anti-jamming capability. - Supported motor speed (Maximum): 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles). - Using Simon K’s a dedicated multi-copter program tgy_debug, and the master chip with high stability crystal oscillator, making the motor control to more precise. Package Included: 1x DYS 30A brushless ESC
