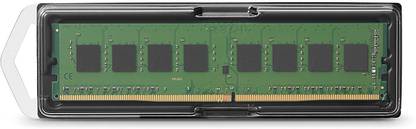

    KINGSTON KVR21N15S8/4 4GB 2133MHz DDR4 DDR4 4 GB (Dual Channel) Server, PC SDRAM (KVR21N15S8/4 4GB 2133MHz DDR4 Server Memory)

    KINGSTON KVR21N15S8/4 4GB 2133MHz DDR4 DDR4 4 GB (Dual Channel) Server, PC SDRAM (KVR21N15S8/4 4GB 2133MHz DDR4 Server Memory)

    Price: Not Available
    Currently Unavailable
    Warranty
    Lifetime warranty on product
    Highlights
    • SDRAM
    • Data rate: DDR4
    • Memory Configuration: Dual Channel
    • Number of Channels: Dual Channel
    • Compatible Device: Server, PC
    Description
    ValueRAM's KVR21R15S8/4 is a 512M x 72-bit (4GB) DDR4-2133 CL15 SDRAM (Synchronous DRAM) registered w/ parity, 1Rx8, ECC, memory module, based on nine 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
    Read More
    Specifications
    In The Box
    Sales Package
    • Kinston Ram KVR21N15S8/4 4GB 2133MHz DDR4
    General
    Brand
    • KINGSTON
    Memory Type
    • 4 GB (4) 2133 MHz DDR4 DIMM
    Memory Standard
    • KVR21N15S8/4 4GB 2133MHz DDR4
    Compatible Device
    • Server, PC
    Pins
    • 288
    Burst Length
    • 8
    Error Check
    • ECC
    Buffered/Unbuffered
    • Unbuffered
    Model ID
    • KVR21N15S8/4 4GB 2133MHz DDR4 Server Memory
    Series
    • KVR21N15S8/4 4GB 2133MHz DDR4
    Memory
    Frequency
    • 2133MHZ MHz (Specified), 2133 MHz (Test)
    Memory Clock
    • 2133 MHz
    Technology
    • DDR4 SDRAM Memory
    Memory Configuration
    • Dual Channel
    Power
    Specified Voltage
    • 1.2 V
    Test Voltage
    • 1.2 V
    Additional Features
    Cooling and Heatsink
    • Heat Spreader
    Other Features
    • • Power Supply: VDD=1.2V (1.14V to 1.26V) • VDDQ = 1.2V (1.14V to 1.26V) • VPP - 2.5V (2.375V to 2.75V) • VDDSPD=2.25V to 2.75V • Functionality and operations comply with the DDR4 SDRAM datasheet • 16 internal banks • Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available • Data transfer rates: PC4-2133, PC4-1866, PC4-1600 • Bi-Directional Differential Data Strobe • 8 bit pre-fetch • Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop) • Supports ECC error correction and detection • On-Die Termination (ODT) • Temperature sensor with integrated SPD • This product is in compliance with the RoHS directive. • Per DRAM Addressability is supported • Internal Vref DQ level generation is available • Write CRC is supported at all speed grades • CA parity (Command/Address Parity) mode is supported
    Warranty
    Service Type
    • By Kingston Service Center
    Not Covered in Warranty
    • Physical damage,Burnt
    Covered in Warranty
    • Manufacturing Defects
    Warranty Summary
    • Lifetime warranty on product
