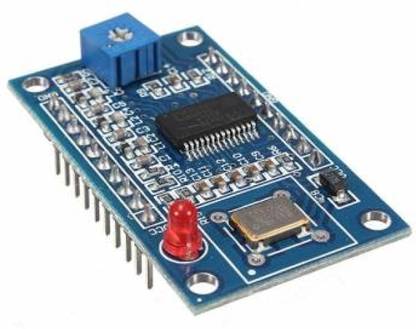

KitsGuru AD9850 DDS DSP Signal Generator Module 0-40MHz Sine Wave for Arduinor Electronic Components Electronic Hobby Kit

DDS outputs sinewave and square wave upto 40 MHz. DDS is a new method to generate analog signals controlled by 32 bit control word. DDS replaces VCO modules. 1. 2 sine wave and 2 square wave output 2. AD9850: 0-40MHz 3. After the 20-30MHz frequency harmonics increases, the waveform will be less and less clean 4. Square Wave: 0-1MHz 5. Low-pass filter with 70MHz, so the waveform better than SN 6. Parallel and serial data input can be selected via a jumper 7. DA produced the benchmark pin (PIN12) leads for easy adjustment to do the magnitude of the output waveform Application
