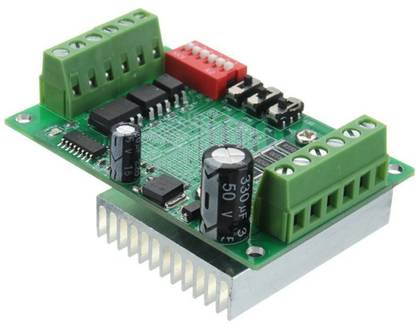

KitsGuru TB6560 Driver Board CNC Router Single 1 Axis Controller Stepper Motor Driv Micro Controller Board Electronic Hobby Kit

KitsGuru TB6560 Driver Board CNC Router Single 1 Axis Controller Stepper Motor Driv Micro Controller Board Electronic Hobby Kit

Price: Not Available
Currently Unavailable
Highlights
  • Power Source: DC
  • Material: Silicone
  • Weight: 75
Description
Using the Toshiba TB6560AHQ new original chip with low voltage shutdown, overheating stop and over current protection circuit to ensure optimal performance. For two-phase within 42, 57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor. Automatic half current function. 6N137 high-speed optical coupling, guarantee high speed without losing step. 1. TB6560 3A stepper motor drives 2. Working voltage DC 10V-35V 3. Recommend the use of switching power supply DC24V 4. The low-pressure shut-off, overheating and over-current protection circuit parking to ensure optimal performance, more details please check below product description 5. The low-pressure shut-off, overheating and over-current protection circuit parking to ensure optimal performance Rated maximum output: ± 3A, 3.5A peak
Read More
Specifications
In The Box
  • One Piece New TB6560 Driver Board CNC Router Single 1 Axis Controller Stepper Motor Driv KG226
General
brand
  • KitsGuru
Model Number
  • TB6560 Driver Board CNC Router Single 1 Axis Controller Stepper Motor Driv
Type
  • Micro Controller Board
ROHS Complaint
  • No
Material
  • Silicone
Dimensions
Width
  • 4 cm
Height
  • 4 cm
Weight
  • 75
Power Features
Battery Type
  • NA
No Of Batteries
  • NA
Battery Size
  • NA
Power Source
  • DC
Other Power Features
  • NA
