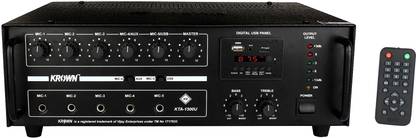

• KTA-1500 USB is a PA amplifier of rated output 120 Watts. It has an built-in MP3 Digital Player, making it a versatile multi-application music centre. The Digital Player accepts USB drives & SD/MMC cards, reproducing clear, high quality music. A remote control is provided for controlling the functions of the Digital Player from a distance.
• This, combined with 5 Microphones inputs, 2 Aux inputs, and provision for multiple speaker connections makes this product ideally suited for a variety of music programmes and public address applications.
• 5 Mic & 2 Aux Inputs.
• Built-in MP3 player with remote control for USB, SD/MMC card reader.
• Line output for connecting to a Booster Amplifier and Preamplifier Output for recording the programme.
• Cut and Boost type Bass & Treble controls.
• Instant transfer to DC power (Car Battery) if AC power fails.
• 5 LED array for output level monitoring.
Power Output 160W Max., 120W RMS at 10% THD
105W RMS at 5% THD, 95W RMS at 2% THD
Output Regulation 2 dB, no load to full load at 1kHz
Input Channels 5×Mic 0.65mV/4.7k , 2×Aux 100mV/470k
1×Line 1V/20k
Frequency Response 50-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: ±8dB at 100Hz, Treble: ±8dB at 10kHz
Outputs Preamp 200mV/600 , Line 1V/1k
Speaker Outputs 4 , 8 , 16 , 70V & 100V
Digital Player MP3 Player with USB, SD and MMC Card Reader
Power Supply DC: 12V(12V Car Battery) AC: 220-240V 50/60Hz
Power Consumption DC: 5.5A AC: 250VA
Dimensions W420×H135×D295 mm
Weight 11.0kg
