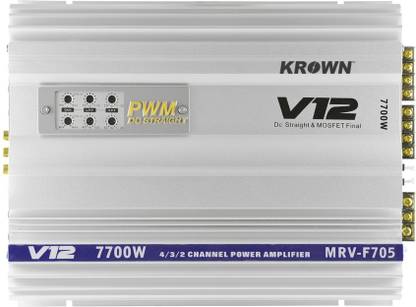

KROWN V12 MRV-F705 4 Channel Power Amp 3600Watts Multi Class AB Car Amplifier

V12 MRV - F705 Four class "AB" High Current Dual Discrete Drive Stages Class "AB" Technology MOSFET PWM Power Supply Bridgeable 4/3/2& Tri Mode Operation Continuously Variable 12dB/Octave High Pass & 12dB/Octave Low Pass Crossover Subwoofer Variable Crossover for Deep Bass Control Enhanced Bass Boost 0dB/ +6dB/ 12dB @ 50Hz Gold Plated RCA & Power, Speaker Terminal Soft Start & Muting Overload, Thermal, Short Circuit Protection Power & Protection Indicator AVERAGE POWER OUTPUT/CH INTO @10Hz ~ 40 kHz, 0.5% THD : 85W x 4 or 1700W x 2 4 OHMS, 4CHANNELS DRIVEN @ 1KhZ, 10% THD : 250W x 4 or 500W x 2 LOW PASS FILTER : ( VARIABLE ) 40Hz ~ 150Hz HIGH PASS FILTER : (VARIABLE ) 80Hz ~ 1.2kHz OUTPUT OF BRIDGED (BTL) : 1000W OPERATION INTO 4 OHMS @ 1 kHz, 1% THD FREQUENCY RESPONSE (-1Db) : 10Hz ~ 40kHz SIGNAL TO NOISE RATIO (“A” WTD) : >100Db INPUT SENSITIVITY : 100Mv ~ 3V INPUT IMPEDANCE : 22k Ohms OPERATION VOLTAGE (NEGATIVE GROUND) : DC 12V SPEAKER IMPEDANCE @ STEREO DRIVEN : 4 Ohms FUSE RATING : 40A x 1 DIMENSIONS (W x H x D) mm : 260 x 58 x 320
