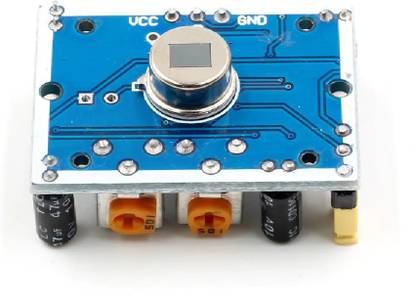

KTC CONS LABS HC-SR501 PIR Sensor Module For Arduino Security Circuit and Motion Detector Electronic Hobby Kit

How to use PIR Motion Sensor The PIR sensor stands for Passive Infrared sensor. It is a low cost sensor which can detect the presence of Human beings or animals. This sensor has three output pins Vcc, Output and Ground as shown in the pin diagram above. Since the output pin is 3.3V TTL logic it can be used with any platforms like Arduino, Raspberry, PIC, ARM, 8051 etc.. The module can be powered from voltage 4.5V to 20V but, typically 5V is used. Once the module is powered allow the module to calibrate itself for few minutes, 2 minutes is a well settled time. Then observe the output on the output pin. Before we analyse the output we need to know that there are two operating modes in this sensor such as Repeatable(H) and Non- Repeatable(L) and mode. The Repeatable mode is the default mode. The output of the sensor can be set by shorting any two pins on the left of the module as shown below. You can also notice two orange colour potentiometers that can be used to set the sensitivity and time which will be explained further below.he HC-SR501 circuit board has solder pads for two additional components. These are usually labeled as ‘RT’ and ‘RL’. Note that on some boards the labels may be covered by the “dome” lens on the side opposite the components. PIR Sensor LDR and Thermistor Setting to Improve Accuracy RT– This is meant for a thermistor or temperature-sensitive resistor. Adding this allows the HC-SR501 to be used in extreme temperatures, it also increases the accuracy of the detector to some degree. RL– This connection is for a Light Dependant Resistor (LDR) or Photoresistor. By adding this component the HC-SR501 will only operate in darkness, a common application for motion-sensitive lighting systems.
