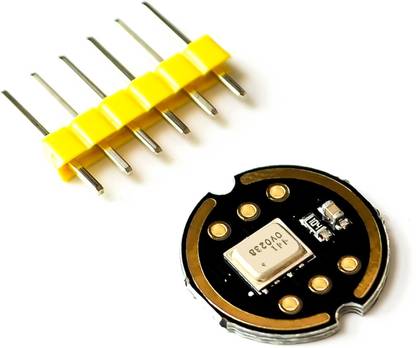

KTC CONS LABS INMP441 MEMS OMNIDIRECTIONAL MICROPHONE MODULE HIGH PRECISION/SNR LOW POWER I2S For ESP32 OR RASPBERRY PI Sound Recorder and Sound Circuit Electronic Hobby Kit

KTC CONS LABS INMP441 MEMS OMNIDIRECTIONAL MICROPHONE MODULE HIGH PRECISION/SNR LOW POWER I2S For ESP32 OR RASPBERRY PI Sound Recorder and Sound Circuit Electronic Hobby Kit

Price: Not Available
Currently Unavailable
Highlights
  • Power Source: DC
  • RoHS Compliant
  • Material: Fiber Glass
  • Weight: 1.05
Description
The INMP441 is a high performance, low power, digital output, omnidirectional MEMS microphone with bottom port. The complete INMP441 solution consists of a MEMS sensor, signal conditioning, analog to digital converter, anti-aliasing filter, power management and industry standard 24-bit I2S interface. The I2S interface allows the INMP441 to be directly connected to digital processors such as DSPs and microcontrollers without the need for an audio codec for use in the system. The INMP441 has a high signal-to-noise ratio and is an excellent choice for near field applications. The INMP441 has a flat wideband frequency response that results in high definition of natural sound.
Read More
Specifications
In The Box
  • 1 Set of INMP441 MEMS OMNIDIRECTIONAL MICROPHONE MODULE HIGH PRECISION/SNR LOW POWER I2S
General
Brand
  • KTC CONS LABS
Model Number
  • INMP441 MEMS OMNIDIRECTIONAL MICROPHONE MODULE HIGH PRECISION/SNR LOW POWER I2S For ESP32 OR RASPBERRY PI
Skillset
  • Sensory Development
Type
  • Sound Recorder and Sound Circuit
ROHS Complaint
  • Yes
Material
  • Fiber Glass
Age Group
  • 8-10 Years
Key Features
  • VCC: Input power, 1.8V to 3.3V.current consumption 1.4 mA, Digital I2S interface with high precision 24-bit data, Stable frequency response from 60 Hz to 15 kHz, High signal to noise ratio is 61 dBA High sensitivity - 26 dBFS, High PSR: -75 dBFS
Dimensions
Width
  • 1.4 cm
Height
  • 1.2 cm
Weight
  • 1.05
Power Features
Battery Type
  • NA
No Of Batteries
  • NA
Battery Size
  • NA
Power Source
  • DC
Other Power Features
  • VCC: Input power, 1.8V to 3.3V.Low power consumption: low current consumption 1.4 mA, Digital I2S interface with high precision 24-bit data, High signal to noise ratio is 61 dBA, Stable frequency response from 60 Hz to 15 kHz
