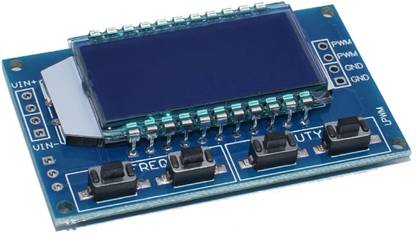

KTC CONS LABS PWM Pulse Frequency Duty Cycle Adjustable Module LCD Display 1Hz-150Khz 3.3V-30V PWM Board Module Educational Electronic Hobby Kit

he module has four independent keys, used to set the frequency and duty cycle, support touch (increase or decrease a unit) and long press (fast increase or decrease), set the parameters automatically save, power down Not lost. Third, the module parameters: Working voltage: 3.3 ~ 30V; Frequency range: 1Hz ~ 150KHz; Frequency accuracy: the accuracy in each range is about 2%; Signal load capacity: the output current can be about 5 ~ 30ma; Output amplitude: PWM amplitude equal to the supply voltage; Ambient temperature: -20 ~ +70 °. Fourth, the scope of application: Used as a square wave signal generator, generate square wave signal for experimental development and use; Used to generate a square wave signal that controls the motor driver; generate adjustable pulse for MCU use; generate adjustable pulse, control the relevant circuit (PWM dimming speed and other applications). 5, serial control (single-chip TTL level communication) Communication standard: 9600 bps Data bits: 8 Stop bit: 1 Check digit: none Flow control: none 1, set the frequency of the PWM "F101": Set the frequency to 101 HZ (001 to 999) "F1.05": set the frequency of 1.05 KHZ (1.00 ~ 9.99) "F10.5": Set the frequency to 10.5KHZ (10.0 ~ 99.9) "F1.0.5": set the frequency of 105KHZ (1.0.0 ~ 1.5.0) 2, set the PWM duty cycle "DXXX": set the PWM duty cycle to XXX; (001 ~ 100) Such as D050, set the PWM duty cycle is 50% 3, read the set parameters Send a "read" string to read the set parameters. Set successfully return: DOWN; Setup failed to return: FALL.
