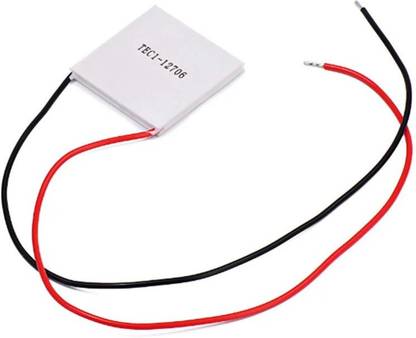

KTC CONS LABS TEC1 12706 40x40mm 12V6A 72W Thermoelectric Cooler Peltier Module Educational Electronic Hobby Kit

KTC CONS LABS TEC1 12706 40x40mm 12V6A 72W Thermoelectric Cooler Peltier Module Educational Electronic Hobby Kit

Price: Not Available
Currently Unavailable
Highlights
  • Power Source: DC, Battery
  • RoHS Compliant
  • Material: Copper
  • Weight: 40.1
Description
Looking to cool down your DIY project or any electronic device then you are at the right product. The TEC1 12706 40×40 mm Thermoelectric Cooler 6A Peltier Module is the simple application of the Peltier Thermoelectric Effect. The module features 127 semiconductor couples in the area of 40 x 40mm which very effectively cools and heats up to 90°C. The thermoelectric cooler is also known as TEC or Peltier Module creates a temperature differential on each side. One side gets hot and the other side gets cool. They use to either warm something up or cool something down; above all, you can use either side. You can also take advantage of a temperature differential to generate electricity. A thermoelectric cooler (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying the DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. They are widely useful in industrial areas, for example, computer CPUs, CCDs, portable refrigerators, medical instruments, and so on. Operating Tips: Max. Operating Temperature: 138 Degree C Do not exceed Imax or Vmax when operating a module. Please carry out moisture protection options (sealing) in final application use. Life expectancy: 200,000 hours Failure rate based on longtime testings: 0.
Read More
Specifications
In The Box
  • TEC1 12706 40x40mm 12V6A 72W Thermoelectric Cooler Peltier Module
General
Brand
  • KTC CONS LABS
Model Number
  • TEC1 12706 40x40mm 12V6A 72W Thermoelectric Cooler Peltier Module
Skillset
  • Sensory Development
Type
  • Educational
ROHS Complaint
  • Yes
Material
  • Copper
Age Group
  • 16+ Years
Key Features
  • Operating Voltage: 12V Maximum Voltage Umax (V) : 15.4V, Maximum Current Imax (A) : 6A Maximum Power: 92 W, Maximum Temperature: 138°C Power Cord: 200mm, Do not exceed Imax or Vmax when operating a module.
Dimensions
Width
  • 4 cm
Height
  • 4 cm
Weight
  • 40.1
Power Features
Battery Type
  • NA
No Of Batteries
  • NA
Battery Size
  • NA
Power Source
  • DC, Battery
Other Power Features
  • Operating Voltage: 12V Maximum Voltage Umax (V) : 15.4V, Maximum Current Imax (A) : 6A Maximum Power: 92 W, Maximum Temperature: 138°C Power Cord: 200mm, Do not exceed Imax or Vmax when operating a module.
