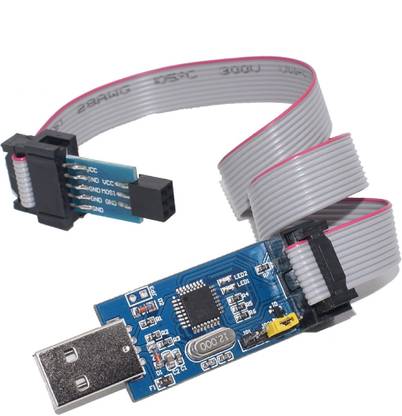

This programmer is based on Thomas Fischl's USBasp design and connects to your computer's USB port. Not only is it quite compact, but the design is really elegent. The USB interface is achieved by using an atmega processor and the rest is done in firmware. For those interested, the firmware source code can be downloaded from the USBasp website. Some of the features include: Support for AVRDude from version 5.2 onwards Allows you to to read or write the microcontroller EEPROM, firmware, fuse bits and lock bits Support for Linux, OS X and Windows (will work on vista) 5 KB/sec maximum write speed Software controlled SCK option to support targets with low clock speed (< 1.5MHz) 10 pin ISP interface These programmers are a perfect companion to the Protostack 28 pin AVR Development Board or the Protostack ATMEGA8 Development Kit
Read More
Specifications
In The Box
1 SET OF USBASP USBISP AVR Programmer USB ATMEGA8 ATMEGA128 ATtiny/CAN/PWM 10Pin Wire Module +10Pin To 6 Pin Adapter Board
General
Brand
KTC CONS LABS
Model Number
USBASP USBISP AVR Programmer USB ATMEGA8 ATMEGA128 ATtiny/CAN/PWM 10Pin Wire Module +10Pin To 6 Pin Adapter Board
Skillset
Sensory Development
Type
Micro Controller Board
Minimum Age
8
ROHS Complaint
Yes
Material
Silicone
Age Group
8-10 Years
Lights
Yes
Sound
No
Suitable For Gifting
NA
Key Features
Support for AVRDude from version 5.2 onwards, Allows you to to read or write the microcontroller EEPROM, firmware, fuse bits and lock bits, 5 KB/sec maximum write speed Software controlled SCK option to support targets with low clock speed (< 1.5MHz) 10 pin ISP interface, These programmers are a perfect companion to the Protostack 28 pin AVR Development Board or the Protostack ATMEGA8 Development Kit, Supported microcontrollers include: Mega Series ATmega8 ATmega48 ATmega88 ATmega168 ATmega328 ATmega103 ATmega128 ATmega1280 ATmega1281 ATmega16 ATmega161 ATmega162 ATmega163 ATmega164 ATmega169 ATmega2560 ATmega2561 ATmega32 ATmega324 ATmega329 ATmega3290 ATmega64 ATmega640 ATmega644 ATmega649 ATmega6490 ATmega8515 ATmega8535 Tiny Series ATtiny12 ATtiny13 ATtiny15 ATtiny25 ATtiny26 ATtiny45 ATtiny85 ATtiny2313 Classic Series AT90S1200 AT90S2313 AT90S2333 AT90S2343 AT90S4414 AT90S4433 AT90S4434 AT90S8515 AT90S8535 CAN Series AT90CAN128 PWM Series AT90PWM2 AT90PWM3
Dimensions
Width
33.5 cm
Height
2.01 cm
Weight
20.6
Power Features
Battery Type
NA
No Of Batteries
NA
Battery Size
NA
Power Source
Battery, DC
Other Power Features
AVR PROGAMMER
