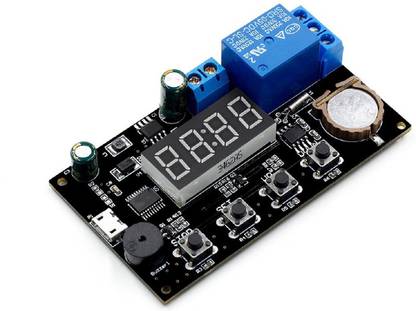

KTC CONS LABS VHM-018 DC 5V Real Time Delay Timer Relay Switch Control Module Clock Synchronization Multi-Mode Control Timer Counter and Clock Electronic Hobby Kit

Description: Real Time Time Relay & Clock Synchronization 24h Time Control Delay Time 5 Time Periods Main product characteristics: Wide power supply 5.0V ~ 60V; The mode can be set for several time periods, can be up to 5 time periods; With alarm function. Mode introduction: OP: Time Relay Closing, CLE: Time Relay Off Time Period: PE-1 ~ PE-5 5 Time Periods (OPE to CLE is Time Period) ----: Functional Shielding P-1: The relay closes or outputs pulses every day until the time point, and the relay turns off or outputs pulses until the cycle time point. P-2: Set the day, to the point in time when the relay is closed or output pulse, to the point in time when the relay is disconnected / or output pulse P-3: Set the date of the month, to the point in time when the relay is closed or the output is pulsed, to the point in time when the relay is off or the output is pulsed P-4: Set date 1 to date 2, start every day at a time point, end up to a CLE time point, relay action or pulse output P-5: As in P-4, only the month cannot be set First, how do you set the time? While launching the interface, press the down button for a while: Step 1: select the time period: PE-1 ~ PE-5 press up and down to select; Step 2: Press the SET key to select the mode: P-1 ~ P-5 (set this time period to the corresponding mode) by pressing the up and down buttons. ("----" means to block this period of time) Note: each time period can be repeated with "----", P-1 ~ P-5 one of the optional; For example, you can allow five times to run in P-1 mode at the same time, or let time period 1 run in P-1 mode, time period 2 run in P-2 mode, and so on. Step 3: After completing the mode selection, press the SET key to enter the time period setting interface, set the interface to the time period, press the set key to switch the parameter, "OPE" start time point, "CLE" end point, "dAE" date information; Step 4: After setting the parameters, to exit the settings, press the SET button for 2 seconds to release, automatically check if the parameter settings are legal, legal to save the parameters, go back to the time to start the interface; If the parameter is wrong, reminder "ERR" (for example, Stop time or date <= start time or date), return to the parameter setting interface; Additional characteristics: Each "time period" can be set individually In the specific parameter setting interface (after the second step), press the stop button to switch the output mode: OUT1: time start point turn on relay, end time off relay OUT2: 1S pulse output for start or end time In the specific parameter setting interface (after the second step), press the STOP button for a while to switch the call mode: BLL0: Ring disconnect BLL1: Turn on the ring Note: When making a call, press any button to stop the ring Extension of the stop key function: Relay activation mode: 1. ON: turn on the relay; 2. Shutdown: do not turn on the relay, it is always off; Press the STOP button on the time display interface to switch between on and off, the current status will flash, then return to the main interface. (This function is an emergency stop function, press once to close the closed relay) After disconnecting the relay, the device can be used as an alarm clock. Sleeping mode: 1. CP sleep mode: within five minutes, without any operation, the digital tube will automatically turn off the display, the program is normal work; 2. Normal mode Od: digital tube always open; Press the stop button for 2 seconds to release to reach the CP and Od state of the switch, the current state will flash, then return to the main interface.
