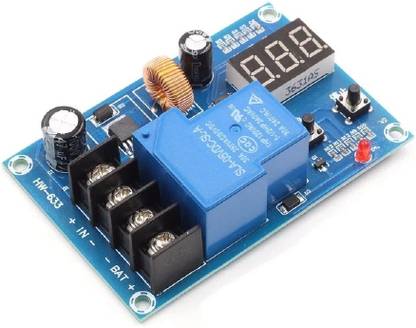

KTC CONS LABS XH-M604 Battery Charger Control Module DC 6-60V Storage Lithium Battery Charging Control Switch Control Protection Panel Micro Controller Board Electronic Hobby Kit

Description Input voltage: 6-60 VDC Display Accuracy: 0.1V Control precision: 0.1V Output type: direct output Voltage tolerance: ± 0.1V Applicable for: batteries 6-60 V max. 80 in Size: 81 * 54 * 18mm Usage: when adjusting the voltage value, the start button play button is raised, about the role of the stop button down key 1. Set Initial Voltage: Normal voltage display, press the start voltage button to display the initial charging voltage. Hold the start button, digital flashes, start and stop button, set the charging start voltage value. 2. Set Stop Voltage: Normal voltage display mode, press the voltage stop button to display the charging stop voltage. Press the stop, digital flashes, start and stop button Set the stop voltage value for charging. 3. Installation error: Activated state When the start / stop button is held down, the digital display is 888, which is the factory setting.
