lider Control panel/starter for water filled submersible/motor pump With Three Phase Auto-Switch -Transformerless [ LD-LM-ASWT 3.0 HP ] Submersible Water Pump  (3 hp)

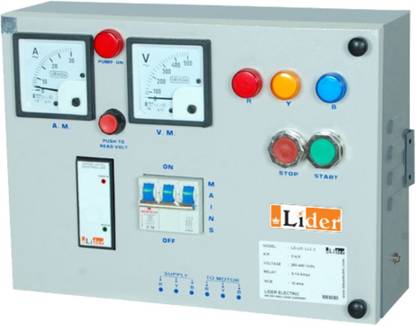

LIDER Three Phase Pump Control Panel for water filled submersible/motor pump with single phase preventer auto-restart (auto-switch)-Transformerless for 3.0 hp Provided panel with Switching device- Miniature Circuit Breaker-M.C.B Three Pole (C Series-inductive load) provided-for short circuit protection.Voltage range between 280-480 Volts with easy replacement of coil.(Range :- 16 Amps) Thermal Overload Relay ( Range:- 6~10 Amps) ensures Overload Protection and manual reset facility. 16 Contactor 4 pole AC3 Motor Duty with easy replacable fixed and moving contacts. Voltmeter Provided for measuring incoming voltages and can be read by pressing a switch for long life of voltmeter.Lamp Indicators(neon lights) provided in front panel for incoming Phase Red ,Yellow and Blue. Single Lamp indication for showing motor pump running condition. Connector terminals for easy connection. Our Lider Three Phase Auto-switch -Transformerless gives these protections along with HIGH/LOW voltage tripping to ensure trouble free running of 3 Phase equipments and it auto starts the equipment with ON DELAY time of 30 secs. Our Lider Three Phase Auto-switch -Transformerless gives ON indication by LED after DELAY time of 30 secs under healthy voltage conditions and during phase failure, reverse phasing or phase unbalance (40V +-6 V, Fixed) indication becomes OFF.
