limitless products TTP223 Digital Touch Sensor capacitive touch switch module DIY for Arduino Electronic Electronic Components Electronic Hobby Kit

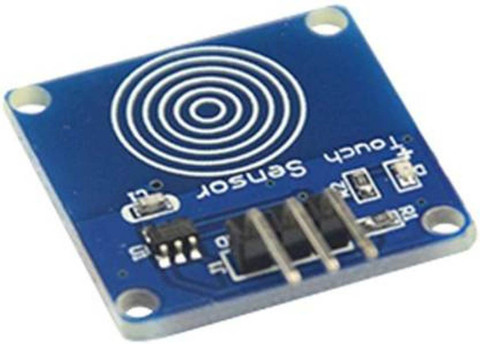

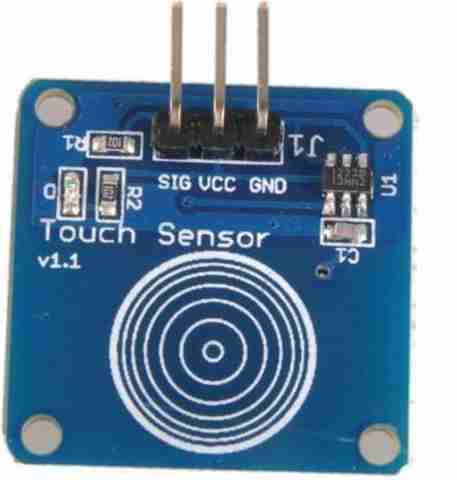

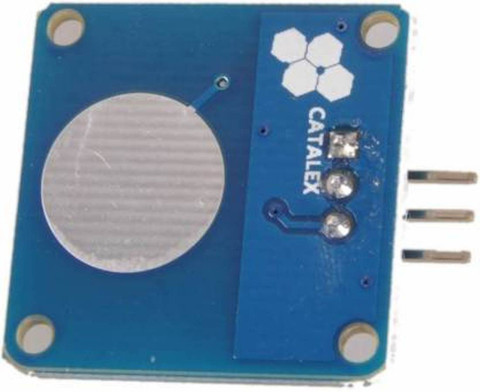

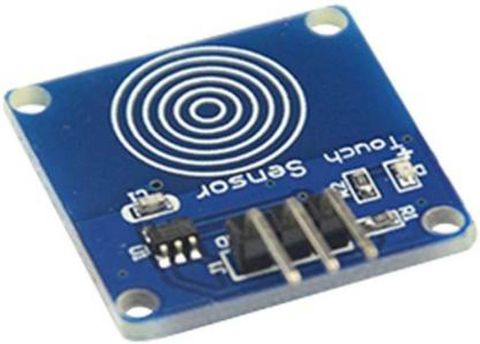

A capacitive touch sensor module based on the dedicated ttp223 touch sensor ic. The module provides a single integrated touch sensing area of 11 x 10.5mm with a sensor range of ~5mm. An on-board led will give a visual indication of when the sensor is triggered. When triggered the modules output will switch from its idle low state to high (default operation). Solder jumpers allow for reconfiguring its mode of operation to be either active low or toggle output. Module can be installed in such as surface plastic, glass of non-metallic materials. Specification:- supply voltage: 2.5 to 5.5v supply current: (vcc = 5v): 6ua (idle) 16ma (active) sensor
