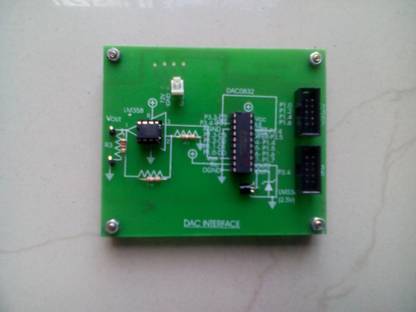

Linwire DAC1 Educational Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Warranty

Highlights

Power Source: Battery

Description

This is small board to experiment of convert Digital signal in to Analog signal. You can see output of this board on CRO. Sample code is available on mentioned website. You can compile code in Keil version 2 cross compiler and create HEX file and download HEX file in to 8051 microcntroller. Then interface this board with 8051 kit and reset and you can see Analog waveform or Triangular waveform also. We have tested on 8051 kit only.

Specifications

In The Box

electronic hobby kit

General

Brand	Linwire
Model Number	DAC1
Type	Educational
Minimum Age	3
ROHS Complaint	No
Age Group	16+ Years
Suitable For Gifting	Gift
Key Features	This board useful to generate sine wave and triangular wave from using digital signal. You can get digital signal from 8051 or any other microcntroller. We have tested on our 8051 microcontroller kit. DAC0832 converts Digital signal to analog signal. We had written tutorial on http://www.engineersgarage.com/contribution/how-interface-dac-0832-ic-based-module-8051-microcontroller

Dimensions

Width	10 cm
Height	8 cm
Other Dimensions	0

Power Features

Battery Type	00
No Of Batteries	0
Battery Size	00
Power Source	Battery
Power Consumption	1
Other Power Features	5 volt power supply required

Warranty

Domestic Warranty	0
International Warranty	0
Warranty Summary	0
Service Type	not required
Covered in Warranty	0
Not Covered in Warranty	0
