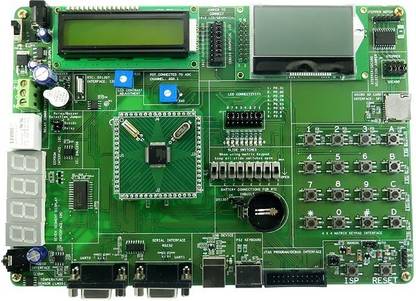

Linwire lpc2148 delux Micro Controller Board Electronic Hobby Kit

Name: Linwire lpc2148 delux Micro Controller Board Electronic Hobby Kit
Brand: Linwire
SKU: EHKEGSFXKPQ2FYYR

Price: Not Available

Currently Unavailable

Warranty

Highlights

Power Source: Battery

Description

Microcontroller: ARM7 TDMI Based LPC2148 from NXP 12Mhz Oscillator for controller. On Board Reset and ISP Switches Manual/Auto programming option via UART0 JTAG Debugging. Inbuilt RTC with 32.768KHz Crystal Oscillator. External RTC (DS1307) with 32.768KHz Crystal Oscillator. CMOS Backup for RTC PS2 Interface USB Device RS232: UART0 and UART1 Audio OUT via DAC On Board EEPROM (24LC256) On Board Temperature Sensor. I2C Based 7 Segment Driver POT for ADC. Connectivity for Buzzer and Relay. 8 Parallel Slide Switches connected to IO Pins. 8 LEDs connected via IO Pins. SD Card Interface. Stepper Motor Interface Option. 128 x 64 Graphical LCD (TM12864H6CCOWA) on board with driver NT75451. 16x2 alphanumeric LCD (4bit mode) with driver HD44780 with contrast control. Onboard 4x4 Matrix Keypad. Onboard Power Supply (5V and 3.3V)

Specifications

In The Box

Electronic hobby kit

General

Brand	Linwire
Model Number	lpc2148 delux
Type	Micro Controller Board
Minimum Age	3
ROHS Complaint	No
Age Group	16+ Years
Suitable For Gifting	Gift
Key Features	Kit Deliverables: ARM7 FULL FEATURE ARTIST Board A to B USB Cable 9V/1A Adapter CD containing sample code, datasheets, user guides and manual, schematic, video tutorail details etc.

Dimensions

Width	15.4 cm
Height	22 cm
Other Dimensions	0

Power Features

Battery Type	0
No Of Batteries	0
Battery Size	0
Power Source	Battery
Other Power Features	0

Warranty

Domestic Warranty	0
International Warranty	0
Warranty Summary	0
Not Covered in Warranty	0

Additional Features

LPC2148 is a low cost learners/development kit based on LPC214x ARM7 series of microcontroller from NXP. The board is designed for general purpose applications and includes a variety of hardware to demonstrate various peripherals for the controller. The board is ideally suitable for training, hobbyist and for developmental purposes, Programming can be done through the on chip boot loader using UART interface (UART0). You will have to use a TTL to RS232 Converter to do so since the pinout are TTL logic and PC uses RS232 logic. The tool used for programming is Flash Magic
