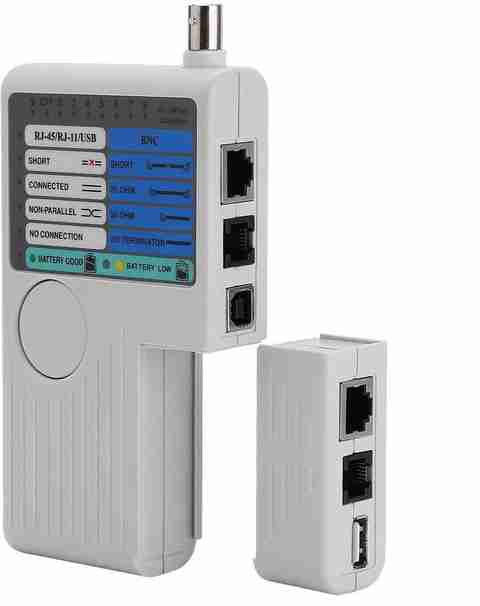

High quality network cable tester, it is with ergonomic portable handheld design, very comfortable to use. It will help test installed wiring or patch cables, test shielded (STP) or unshielded (UTP) LAN cables and test shields in USB cables. Suitable for testing 4 types of cables: RJ-45, RJ-11, USB and BNC.
Features:
-Can test RJ11/RJ45/BNC/USB cables.
-Fast speeding in testing.
-LED clear indications.
-Fast reaction during test process.

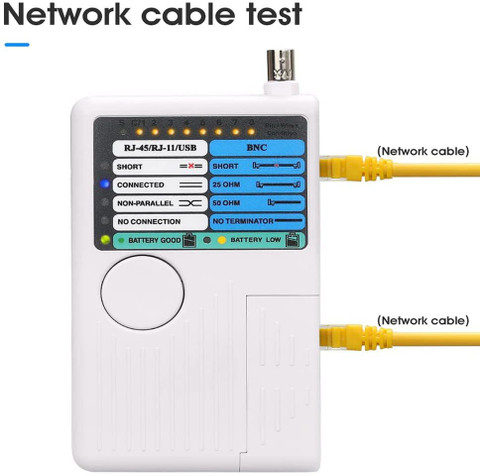

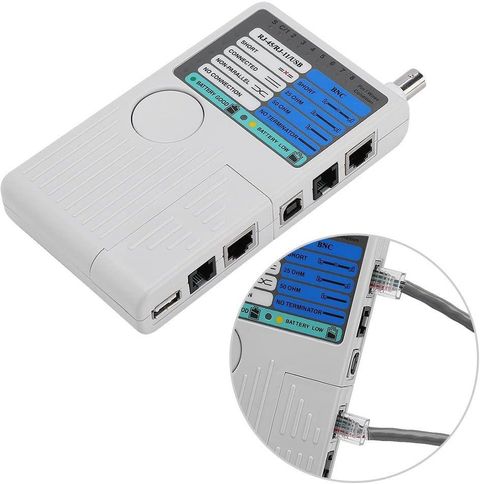

-Test the installed cable or jumper.
-One-touch test is simple. Beeps sound provides audible test results.

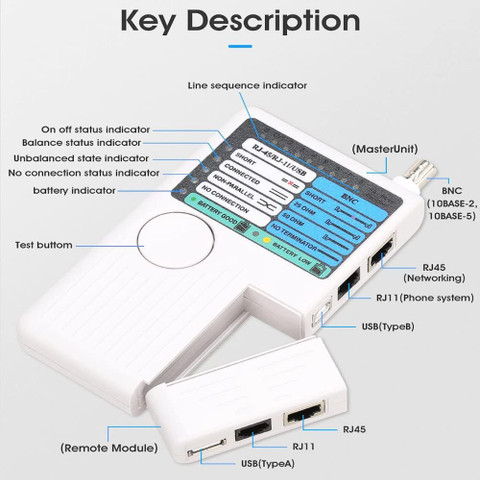

-Easily visible LED screen displays connection and fault operation status. Display connected wires, crossover wires.
-Automatic scanning detection network cable, detecting the jump, short circuit, short circuit and the order of the core.
Specifications:
Cable Tested:
UTP and STP LAN cables, terminated in RJ-45 male connectors (EIA/TIA 568);
RJ-11 cables with male connectors, 2 to 6 conductors installed;
USB cables with type A flat plug on one end and type B square plug on other end;
BNC cables with male connectors
Faults Indicated: No Connections, Shorts, Opens and Crossover
Low Battery Indicator: LED lights to indicate low battery
Power: 1 x 9 V 6F22 DC Alkaline Battery (Battery Not Included)
Color: grey

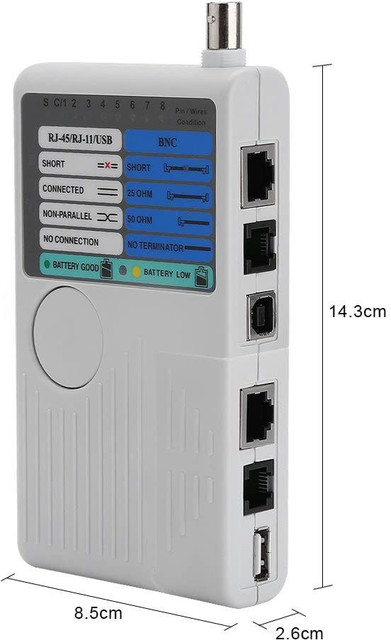

Item size: appox. 162 * 85 * 25mm / 6.38 * 3.35 * 0.98in
Item weight: 164g / 5.78oz (battery excluded)
Package size: 22.5 * 11 * 4.3 cm / 8.86 * 4.33 * 1.69in
Package weight: 215g / 7.58oz
Item Includes:
1 * 4-in-1 Network Cable Tester
1 * Far End Remote Jack (USB RJ45 RJ11) (Attached to the main unit)
1 * BNC Remote Jack
1 * Carrying Bag
1 * Instruction Manual
